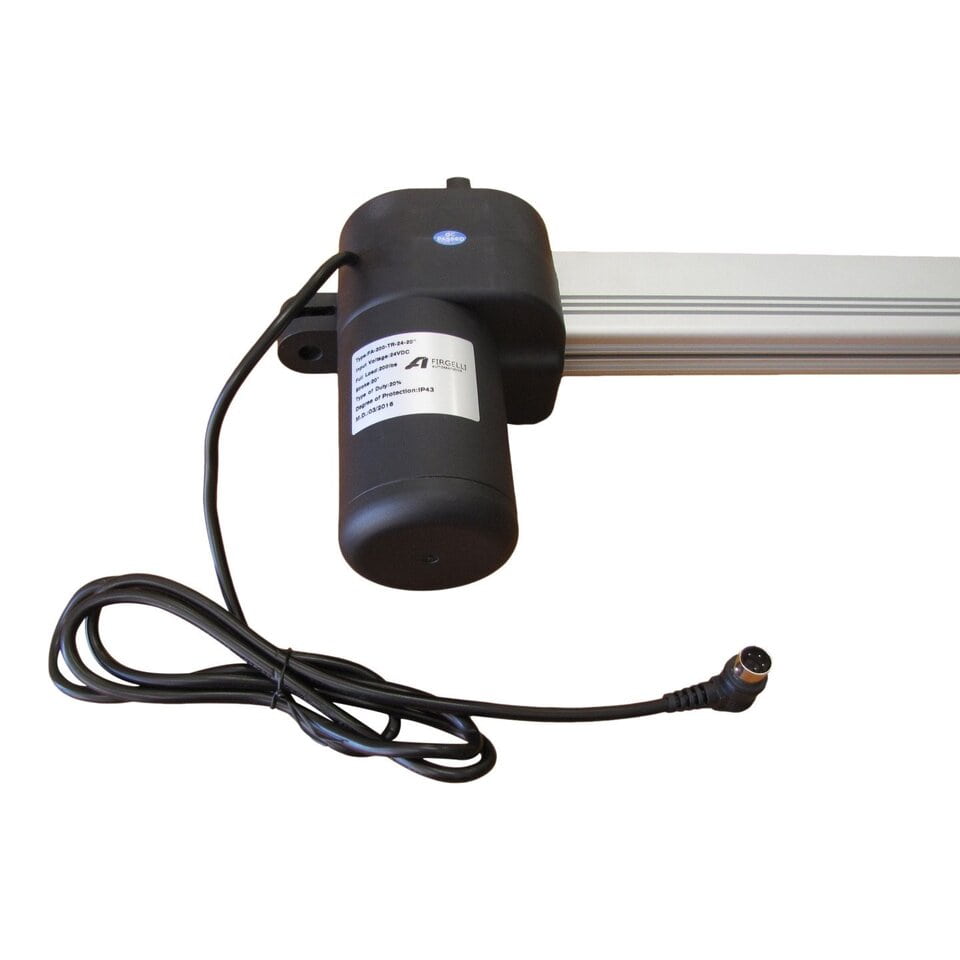

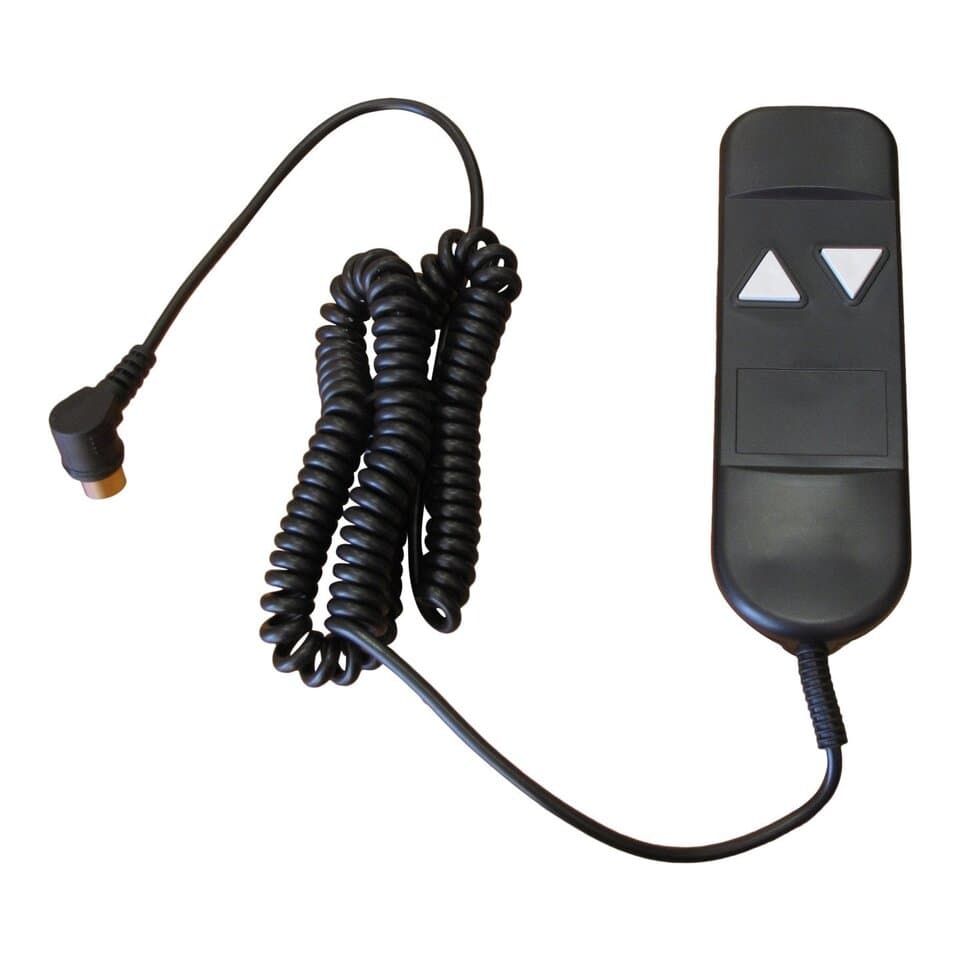

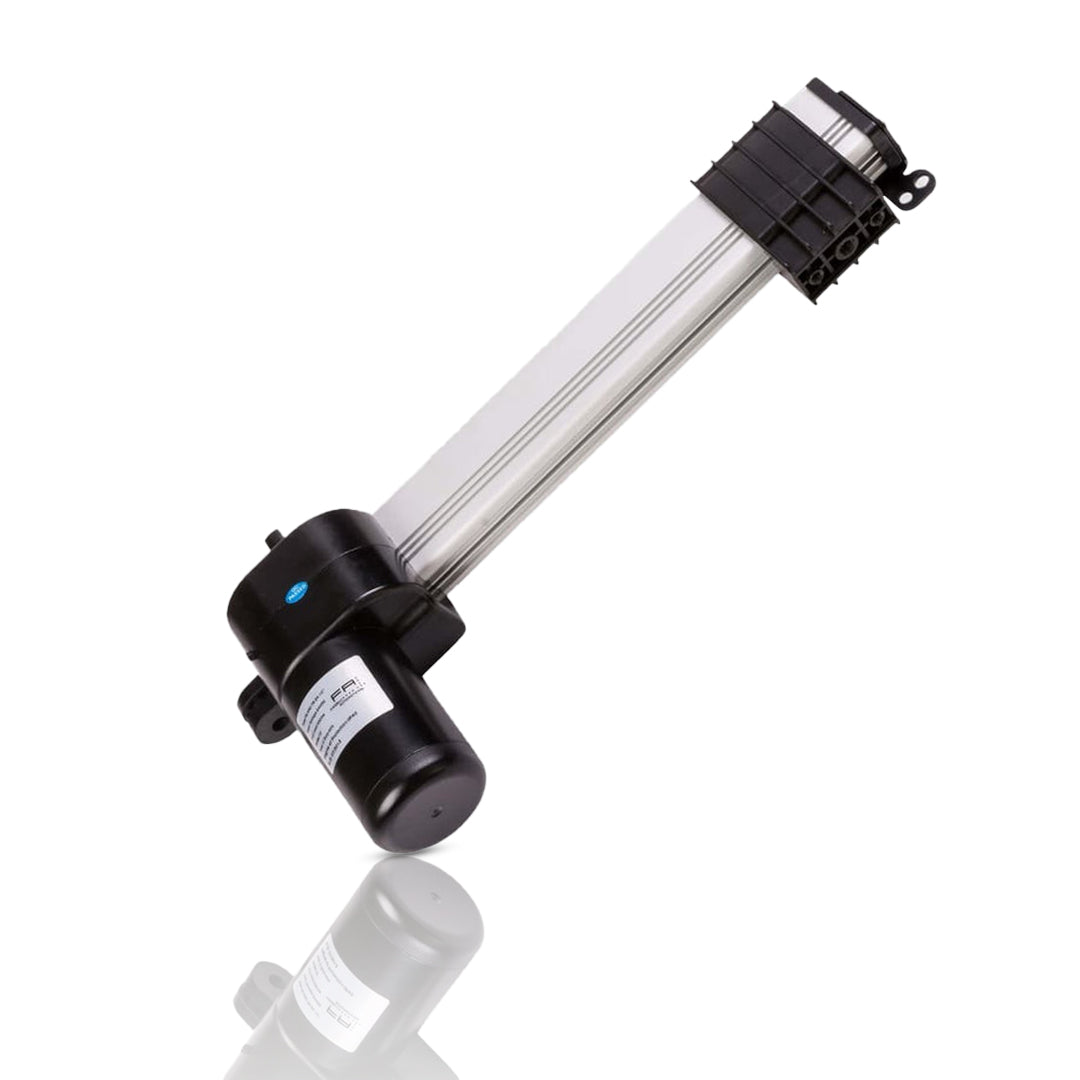

      Heavy Duty Track Actuators with many stroke and controller options. These actuators have a sliding carriage that travels across the main body; brackets allow items to be attached to this carriage. All Heavy Duty Track Actuator units come with a power supply, and momentary wired controller for your convenience.

      The track actuators offered by Firgelli Automations were developed to fill an essential gap in the linear actuator market. Some applications require an actuator with a very small closed length while maintaining a long stroke; Conventional Rod-style actuators cannot be used in this situation since they require a long casing to house the shaft when retracted. Track Actuators feature a block which slides along the length of the unit, offering application flexibility for vertical or horizontal movement.

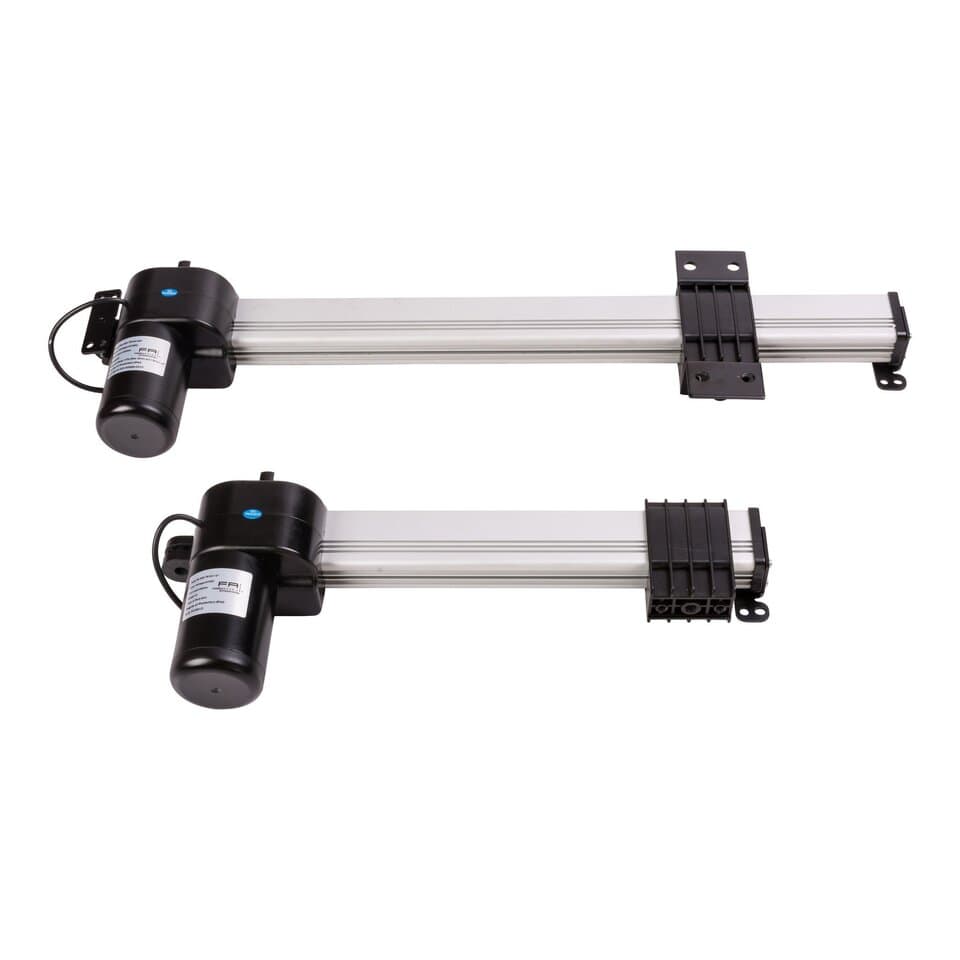

      Mounting is possible on three sides of the moving block, and Firgelli Automations offers MB5 Mounting Brackets to assist with attachments. As with all the linear actuators that Firgelli Automations offers, the Heavy-Duty Track Actuator lineup features factory preset internal limit switches, high grade materials providing first rate build quality, smooth and quiet operation at just 5db over ambient noise levels, and versatile mounting options on both ends: a clevis mount and a bracket which rotates on 90 degree intervals allow you to mount the actuator as you please.

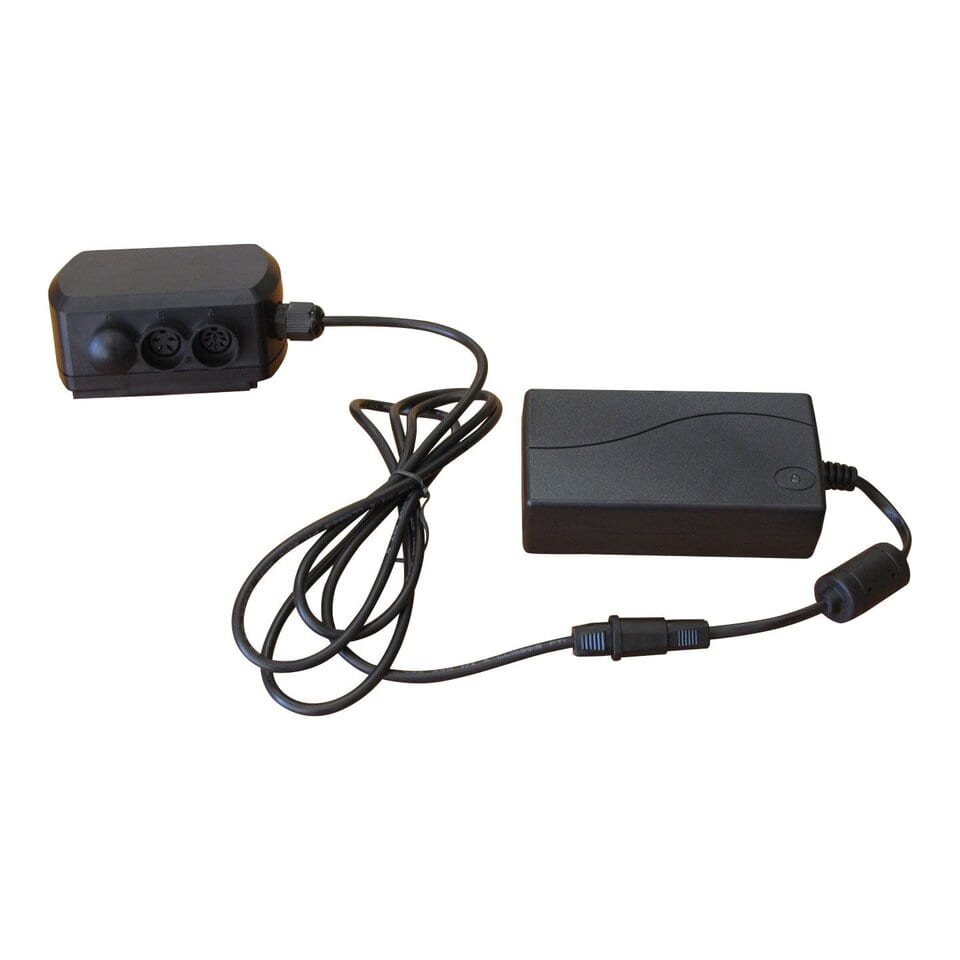

      The Heavy-Duty Track Actuator line has two variations, a 200 lb force unit and a 400 lb force unit. Both come as plug & play systems with a wired remote, a power adapter, a control box, and the actuator itself. The power adapter is compatible with North American wall outlets.

      Specifications
      Model FA-200-TR-24-XX FA-450-TR-24-XX
      Dynamic Force 200 lb 400 lb
      Static Force 175 lb 350 lb
      Speed ("/S) 0.6 (1.56 no load) 0.15 (0.4 no load)
      Duty Cycle 20% at 100% load, 50% at 25% of load, 2 mins on/10min off
      IP Rating 43
      Input 24v DC
      Feedback None
      Synchronous Capability None, 5-10% variation in speed
      Main Tube Aluminum Alloy
      Current 3 amps full load
      Operational Temperature -26°C/65°C (-15°F/150°)
      Limit Switch Built-in (factory preset)
      Safety Certifications CE
      Carriage Holes Two center holes are M10*1.5. Four smaller holes are M6*1.0
      Bracket(s) MB5

      Stroke Hole to Hole Weight STEP Files
      10" 18.5" 10.4 lbs FA-(F)-TR-24-10
      20" 28.5" 12 lbs FA-(F)-TR-24-20
      30" 38.5" 14 lbs FA-(F)-TR-24-30
      40" 48.5" 16.8 lbs FA-(F)-TR-24-40
      50" 58.5" 19 lbs FA-(F)-TR-24-50
      60" 68.5" 21.4 lbs FA-(F)-TR-24-60
      Technical Drawings

      Looking for a 3D model of this actuator? Visit the Resources Page under 3D Files Tab.

      Heavy Duty Track Actuator Technical Drawing
      Wiring Diagram

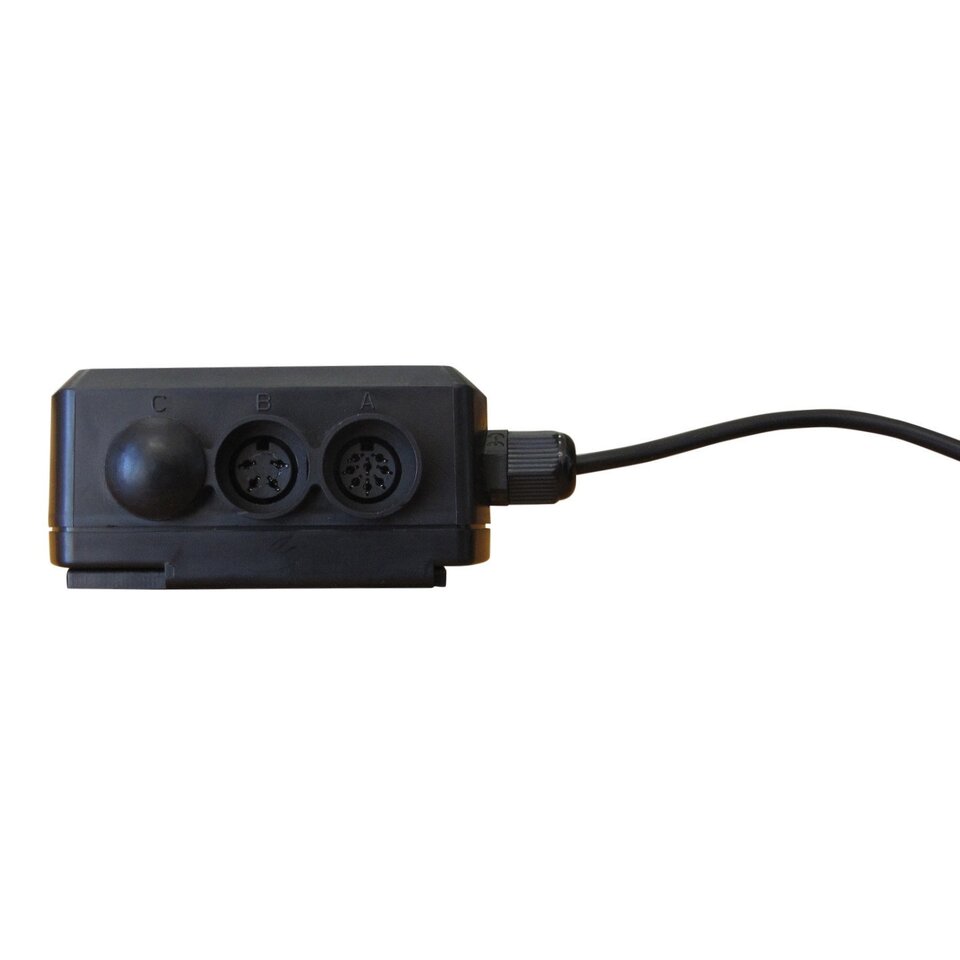

      Track Actuator Control Box
      Performance Graph
      Heavy Duty Track Performance Graph jpg
