Kitchen Appliance Lift - Column Lift Actuator

      Kitchen Appliance Lift - Column Lift Actuator

      USD
      Model #
      Stroke
      Quantity
      qty limit cart limit
      In Stock

      Add

      Warranty Plus

      Warranty Plus:
      Your product will be replaced (including free shipping) with a new one within 12 months of purchase, even if it is damaged due to improper wiring, incorrect usage, a problem in the electrical installation or any other circumstance.

      Standard Warranty:
      12 month warranty comes with every purchase. Covers malfunctions when it is used within the described conditions/limits.

       +8%

      Shipping Cost Estimator

      Note: You must have items in your cart already before you can see the estimated costs to ship your cart. This shipping tool will estimate the total shipping cost for your entire basket.

      Description

      Column Lifts have many application opportunities from Kitchen Appliance garage lifts, to lifting projectors, and podiums.  Cabinet makers will love working with these plug and play lift systems as they are simple to install and used in many applications.  Check out our projects page to view some videos of other people's projects using these Kitchen appliance lift systems, also known in the industry as  "lifting columns". The FIRGELLI Lift columns, were recentlly used in an episode of HGTV's House Crashers, to lift a drinks cabinet out of a cabinet, and a TV out of the same cabinet.

      FIRGELLI's Lifting columns have a compact and clean design with great optional Remote Control. They provide optimal ergonomics in applications for office, home and industrial markets along with the hospital and care sector. Furthermore, column lifts can be used upside down to lift objects up such as for Projector lifts.

      Our Column lift is a compact lift system, which is a perfect choice for a wide range of different applications. Our column lifts are compact when closed and extend at the touch of a button lifiting up (or down if used upside down).  The length of movement we call the stoke, can be programmed to open a set amount thats less than the stroke length of each lift system.  You select the model thats closest in stroke length to the stroke you need for your application.  For example, if you want to lift a kitchen appliance cabinet up out of your kitchen island 20" high, then you would buy the FA-SCL-650 and use the built in memory function to set the memory to your desired 20" limit.

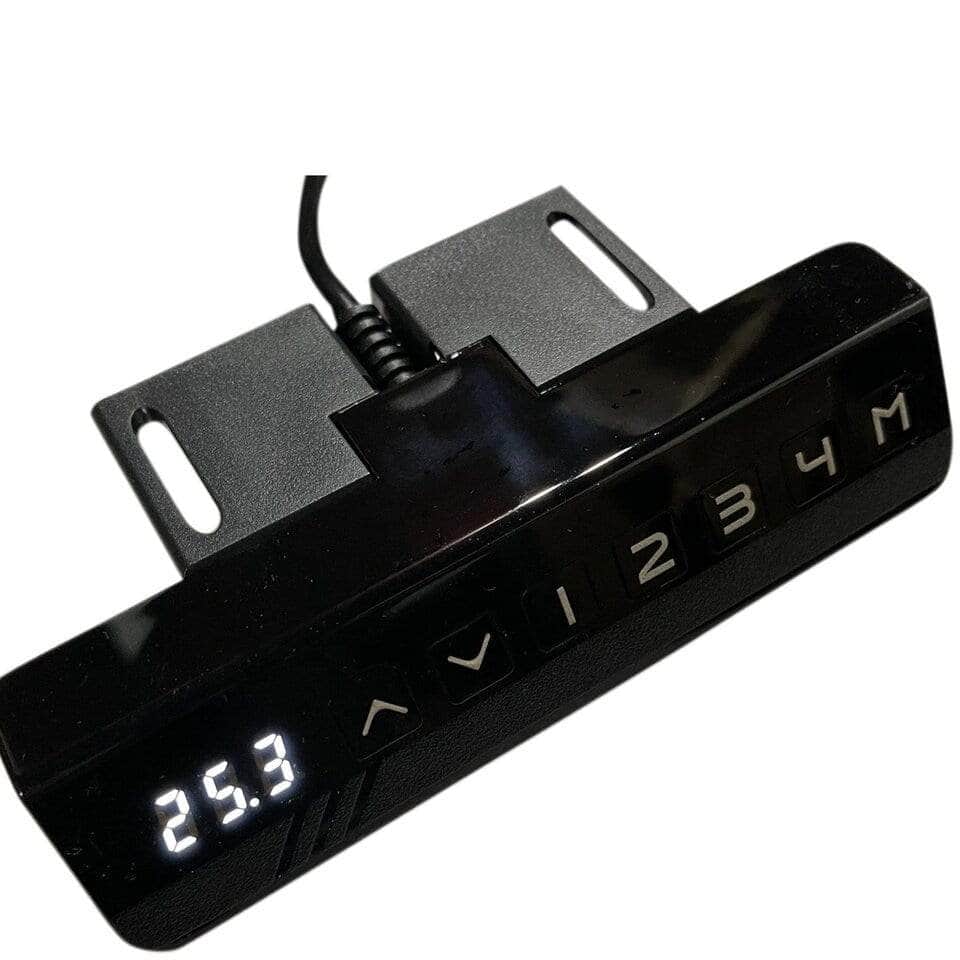

      The Column Lift is controlled with a simple plug-in programmable controller with arrow up and down buttons as well as memory positions and a digital readout showing position. Simply press the button and watch the lift raise quietly and effortlessly. Using the programmable controller, you can set certain pre-determined heights. The optional wireless controller is available here

      For details on Kitchen appliance lift systems visit our blog post here

      Specifications
      Model FA-SCL-650 FA-SCL-1000
      Dynamic Force 180 lbs 80 lbs
      Stroke 25.6" 39"
      Retracted 22" 32"
      Load Capacity 180 lbs. (800N) 80 lbs.
      Load Capacity Upside Down 135 lbs 55 lbs.
      Speed at full load 0.8" 0.8"
      Bending Moment 1200lbs-in 1200lbs-in
      IP Rating IP43
      Output Voltage 24V via Control Box
      Input Voltage 100-120vAC 50/60Hz, 4000W
      Duty Cycle 50% depending on load
      Certification CE
      Overload Protection Built into the control box
      Programmable Stop Includes Programmable Controller
      Mounting Holes M6
      Technical Drawings
      Column Lift Technical Drawing
      Product Videos


      3D Model Downloads (.STEP)
      Downloads
