Wavenumber Interactive Calculator

Designing optical systems, spectroscopic instruments, or quantum electronic devices requires knowing the spatial frequency of your wave — not just its temporal frequency. Use this Wavenumber Interactive Calculator to calculate angular wavenumber (k) and spectroscopic wavenumber (ν̃) using wavelength, frequency, photon energy, phase velocity, or effective mass as inputs. Accurate wavenumber values are critical in IR/Raman spectroscopy, phased array antenna design, semiconductor band structure analysis, and multilayer optical coating engineering. This page includes the fundamental equations, a worked multi-layer coating example, theory on dispersion and refractive index effects, and a full FAQ.

What is Wavenumber?

Wavenumber is the number of wave cycles — or radians of phase — that fit into one unit of distance. It is the spatial equivalent of frequency. A higher wavenumber means the wave oscillates more rapidly through space.

Simple Explanation

Think of wavenumber like the density of stripes on a barcode: the more stripes packed into a centimeter, the higher the wavenumber. When light slows down entering glass, its stripes squeeze closer together — wavenumber increases, wavelength shrinks, but the color (frequency) stays the same. Two different conventions exist: one counts full cycles per unit length, the other counts radians of phase — they differ by a factor of 2π.

📐 Browse all 1000+ Interactive Calculators

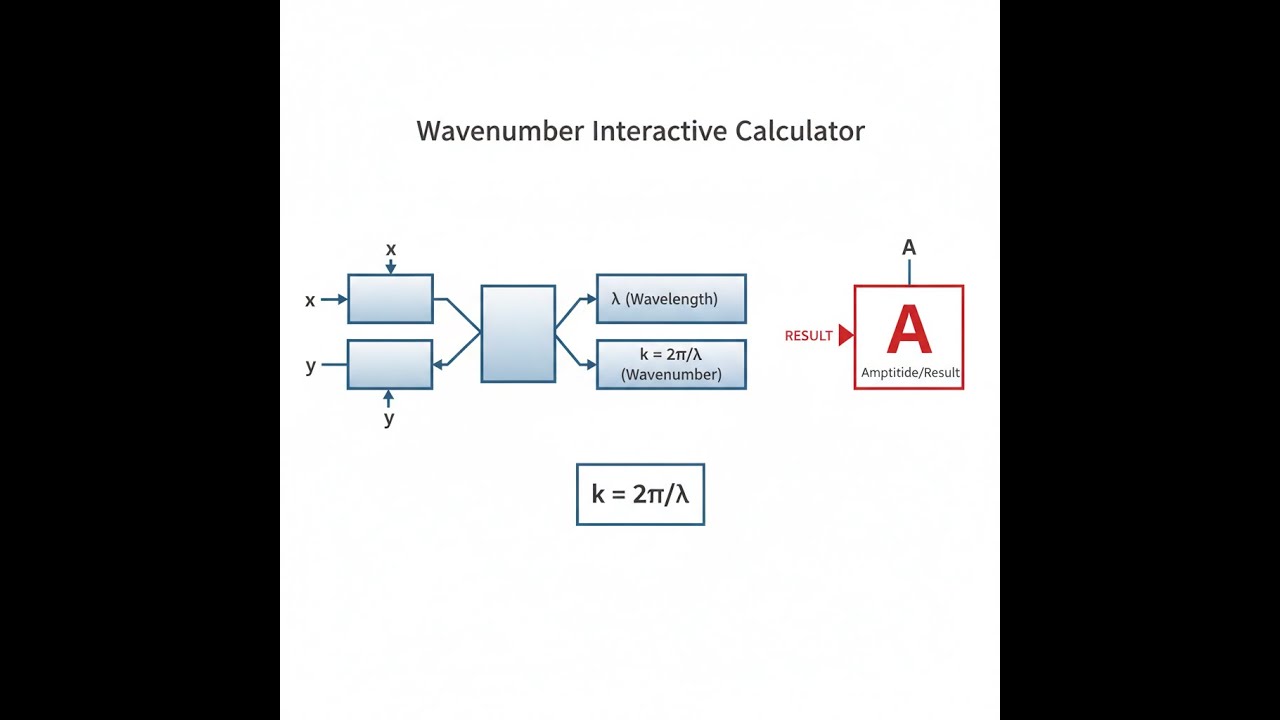

Wave Diagram

Wavenumber Interactive Calculator

How to Use This Calculator

1. Select your calculation mode from the dropdown — choose from wavelength, frequency, photon energy, angular wavenumber, spectroscopic conversion, or dispersion relation.
2. Enter your known values in the input fields that appear — wavelength in nm, frequency in THz or GHz, energy in eV, or wavenumber in rad/m depending on the selected mode.
3. If your wave propagates through a medium other than vacuum, enter the refractive index where prompted.
4. Click Calculate to see your result.

Fundamental Equations

Use the formula below to calculate wavenumber from wavelength, frequency, phase velocity, or energy.

Simple Example

Green light in vacuum — wavelength = 500 nm, refractive index = 1.0:

• Angular wavenumber: k = 2π / (500 × 10⁻⁹ m) = 1.2566 × 10⁷ rad/m
• Spectroscopic wavenumber: ν̃ = 1 / (500 × 10⁻⁷ cm) = 20,000 cm⁻¹
• Frequency: f = 599.6 THz
• Photon energy: 2.480 eV

Theory & Practical Applications

Wavenumber represents the spatial frequency of a wave — the number of wave cycles per unit distance. Unlike temporal frequency which measures oscillations in time, wavenumber quantifies the spatial periodicity of wavefronts. The two standard conventions reflect different physics communities: physicists and engineers prefer the angular wavenumber k = 2π/λ measured in radians per meter because it appears naturally in wave equations and Fourier transforms, while spectroscopists use ν̃ = 1/λ in reciprocal centimeters because it directly relates to molecular energy levels through E = hcν̃.

Dispersion Relations and Phase Velocity

The fundamental relationship ω = v_pk connects angular frequency to wavenumber through the phase velocity. In vacuum electromagnetic waves, this reduces to ω = ck, the linear dispersion relation where phase and group velocities are identical. Dispersive media break this degeneracy — in optical fiber at 1550 nm, silica's chromatic dispersion causes different wavelengths to propagate at different velocities, with dv_p/dλ ≈ -0.02 m/s/nm. This wavelength-dependent phase velocity creates pulse broadening in telecommunications systems, limiting data rates to approximately 10 Gbit/s over 80 km of standard single-mode fiber without dispersion compensation.

Material dispersion manifests through the refractive index's frequency dependence n(ω), described by the Sellmeier equation for transparent dielectrics. In semiconductor physics, electronic band structure creates highly nonlinear dispersion relations. The parabolic band approximation E(k) = ℏ²k²/(2m*) near the Γ-point in GaAs yields an effective mass m* = 0.067m_e, giving k = 5.27 × 10⁷ rad/m for electrons with 100 meV kinetic energy. This corresponds to a de Broglie wavelength of 119 nm — well below optical wavelengths but resolvable in electron diffraction experiments.

Spectroscopic Applications and Energy Units

Infrared spectroscopists universally report absorption peaks in wavenumbers (cm⁻¹) rather than wavelengths because vibrational energy levels scale linearly with ν̃. The C-H stretching mode in methylene groups appears at 2850 cm⁻¹ regardless of the molecule — a wavelength of 3.509 μm. This wavenumber corresponds to a photon energy of 353.3 meV or 0.3533 eV, calculated via E(eV) = 0.00012398 × ν̃(cm⁻¹).

The convenience of this unit becomes apparent when building spectral libraries: a database storing peak positions as wavenumbers can directly compare spectra regardless of instrument configuration, whereas wavelength calibration depends on spectrometer optics and detector geometry.

Raman spectroscopy reports Stokes shifts relative to the excitation laser wavenumber. Using a 532 nm Nd:YAG laser (ν̃_laser = 18,797 cm⁻¹), a diamond sample exhibits a sharp phonon peak at ��ν̃ = 1332 cm⁻¹ Stokes shift, corresponding to an absolute wavenumber of 17,465 cm⁻¹ (572.5 nm scattered light). The wavenumber representation immediately reveals this corresponds to 165.2 meV phonon energy — the zone-center optical phonon energy in diamond's crystal structure.

Refractive Index Effects and Optical Path Length

When light enters a dielectric medium with refractive index n, the vacuum wavenumber k₀ = 2π/λ₀ increases to k = nk₀ while the frequency remains constant. For a 1064 nm Nd:YAG laser entering BK7 glass (n = 1.5067 at 1064 nm), the wavelength compresses to λ = 706.2 nm inside the glass while k increases from 5.906 × 10⁶ rad/m to 8.900 × 10⁶ rad/m. This 50.7% increase in spatial frequency underlies the focusing power of lenses — the shorter wavelength allows tighter confinement approaching the diffraction limit. The optical path length L_opt = nL_geom accumulates phase Φ = kL_opt, creating interference patterns in thin-film coatings and Fabry-Pérot etalons.

Group velocity dispersion (GVD) in optical systems is quantified through the second derivative d²k/dω², typically expressed in ps²/km for fiber optics. Standard SMF-28 fiber exhibits GVD = +17 ps²/km at 1550 nm, meaning a 1 ps transform-limited pulse broadens to 1.83 ps after 1 km propagation. This effect becomes critical in ultrafast laser systems where maintaining pulse duration requires dispersion pre-compensation using chirped mirrors or prism pairs that introduce negative GVD to cancel material dispersion.

Worked Example: Multi-Layer Optical Coating Design

Problem: Design a quarter-wave stack anti-reflection coating for a silicon photodetector (n_Si = 3.48) operating at λ₀ = 850 nm. The coating uses alternating layers of TiO₂ (n_H = 2.35) and SiO₂ (n_L = 1.46). Calculate the physical thickness and wavenumber in each layer, then determine the phase shift for light traversing one complete H-L pair.

Solution:

Part A: Calculate layer thicknesses for quarter-wave optical thickness at 850 nm.

Quarter-wave optical thickness: n·d = λ₀/4

TiO₂ high-index layer:
d_H = λ₀/(4n_H) = 850 nm / (4 × 2.35) = 90.43 nm

SiO₂ low-index layer:
d_L = λ₀/(4n_L) = 850 nm / (4 × 1.46) = 145.55 nm

Part B: Calculate wavenumber in each layer.

Vacuum wavenumber:
k₀ = 2π/λ₀ = 2π / (850 × 10⁻⁹ m) = 7.3912 × 10⁶ rad/m

In TiO₂:
k_H = n_H·k₀ = 2.35 × 7.3912 × 10⁶ = 1.7369 × 10⁷ rad/m
λ_H = 2π/k_H = 361.7 nm (wavelength inside TiO₂)

In SiO₂:
k_L = n_L·k₀ = 1.46 × 7.3912 × 10⁶ = 1.0791 × 10⁷ rad/m
λ_L = 2π/k_L = 582.2 nm (wavelength inside SiO₂)

Part C: Calculate phase accumulation through one H-L pair.

Phase in high-index layer:
Φ_H = k_H·d_H = 1.7369 × 10⁷ × 90.43 × 10⁻⁹ = 1.5708 rad = π/2

Phase in low-index layer:
Φ_L = k_L·d_L = 1.0791 × 10⁷ × 145.55 × 10⁻⁹ = 1.5708 rad = π/2

Total phase through one pair:
Φ_total = Φ_H + Φ_L = π rad = 180°

Part D: Verify reflectance reduction at design wavelength.

For normal incidence on silicon with one H-L pair, the effective interface impedance becomes:
n_eff = n_L²/n_H = 1.46² / 2.35 = 0.907

Air-coating interface reflectance:
R₁ = [(n_L - 1)/(n_L + 1)]² = (0.46/2.46)² = 0.0350 = 3.50%

Coating-silicon interface reflectance (reduced):
R₂ = [(n_Si - n_eff)/(n_Si + n_eff)]² = (2.573/4.387)² = 0.344 = 34.4%

Without coating, bare silicon at 850 nm has:
R_bare = [(n_Si - 1)/(n_Si + 1)]² = (2.48/4.48)² = 0.306 = 30.6%

The single H-L pair increases reflectance slightly — practical AR coatings require 3-5 pairs to achieve R less than 0.5% through destructive interference between multiple reflected beams.

Part E: Calculate spectroscopic wavenumber for quality control.

Spectroscopic wavenumber at design wavelength:
ν̃ = 1/λ₀ = 1/(850 × 10⁻⁷ cm) = 11,765 cm⁻¹

This value appears in ellipsometry data when measuring coating thickness — the characteristic interference pattern shows maxima/minima separated by Δν̃ = 1/(2n_Hd_H) = 2350 cm⁻¹ for the TiO₂ layer, allowing non-destructive thickness verification during production.

Antenna Arrays and Spatial Filtering

Phased array antennas use wavenumber as the spatial equivalent of temporal frequency in signal processing. A linear array with element spacing d = λ/2 creates a spatial sampling rate k_s = 2π/d = 4π/λ. To avoid grating lobes (spatial aliasing), the array factor must satisfy k_max less than k_s/2, limiting the maximum steering angle. For a 10 GHz radar (λ = 3 cm) with d = 1.5 cm spacing, the wavenumber in free space is k = 209.44 rad/m, while the array's spatial Nyquist limit is k_Nyquist = 209.44 rad/m, allowing steering to ±90° without grating lobes. Decreasing spacing to d = λ/4 increases k_s to 8π/λ, enabling superdirective patterns but at the cost of mutual coupling between elements.

Quantum Mechanics and Crystal Momentum

In solid-state physics, the crystal momentum ℏk serves as a quasi-momentum for electrons in periodic lattices. Bloch's theorem restricts physically distinct states to the first Brillouin zone |k| ≤ π/a where a is the lattice constant. For silicon with a = 5.431 Å, the zone boundary occurs at k_max = 5.788 × 10⁹ rad/m. Electrons at this wavenumber have kinetic energy E = ℏ²k²/(2m*) = 11.4 eV for free-electron mass, but band structure modifications reduce this to the actual conduction band minimum at 1.12 eV. Conservation of crystal momentum k_i + k_phonon = k_f governs indirect optical transitions in silicon, requiring phonon assistance because the valence band maximum and conduction band minimum occur at different k-points.

Measurement Techniques and Calibration

Fourier-transform infrared (FTIR) spectroscopy achieves wavenumber accuracy better than 0.01 cm⁻¹ through HeNe laser frequency reference at 15,798.0 cm⁻¹ (632.991 nm). The interferometer samples the optical path difference at intervals calibrated to the laser wavelength, directly producing spectra in wavenumber space via discrete Fourier transform. This surpasses diffraction grating monochromators where wavenumber ν̃ = (sin θ_in + sin θ_out)/(λ_groove·m) depends on mechanical angle accuracy — typically limiting precision to 0.1 cm⁻¹ for 1200 lines/mm gratings at visible wavelengths.

For additional engineering calculations and wave physics tools, visit our free engineering calculator library.
