      These High Speed Linear Actuators offer fast speeds in many stroke options. The trade-off for achieving these higher speeds is always lower force; so if you need more force, try a slower actuator as an alternative (like our Deluxe). These are great for applications where you want to move something quickly, but force is not an issue.

      CAD models of this actuator can be found under Resources/3D Files. For further information review the specifications and technical drawings down below or visit our tutorials page for instructions on how to use this actuator with switches, remotes and speed controllers.

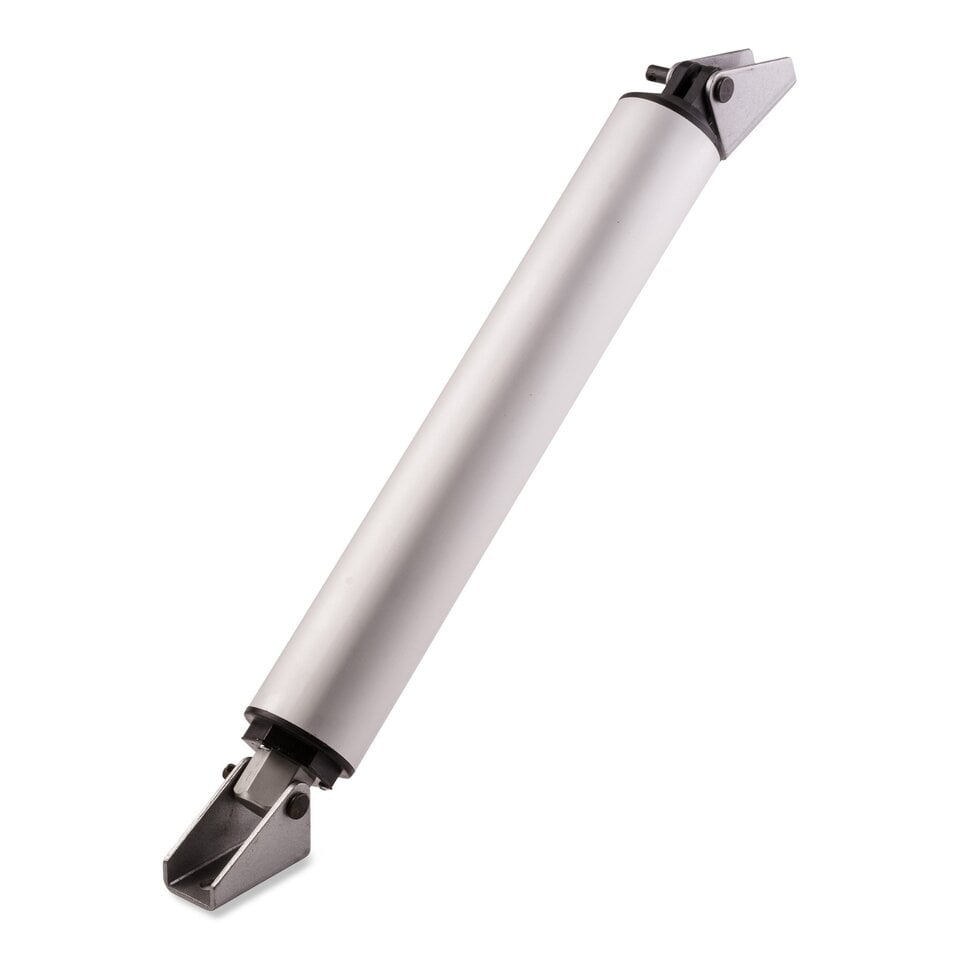

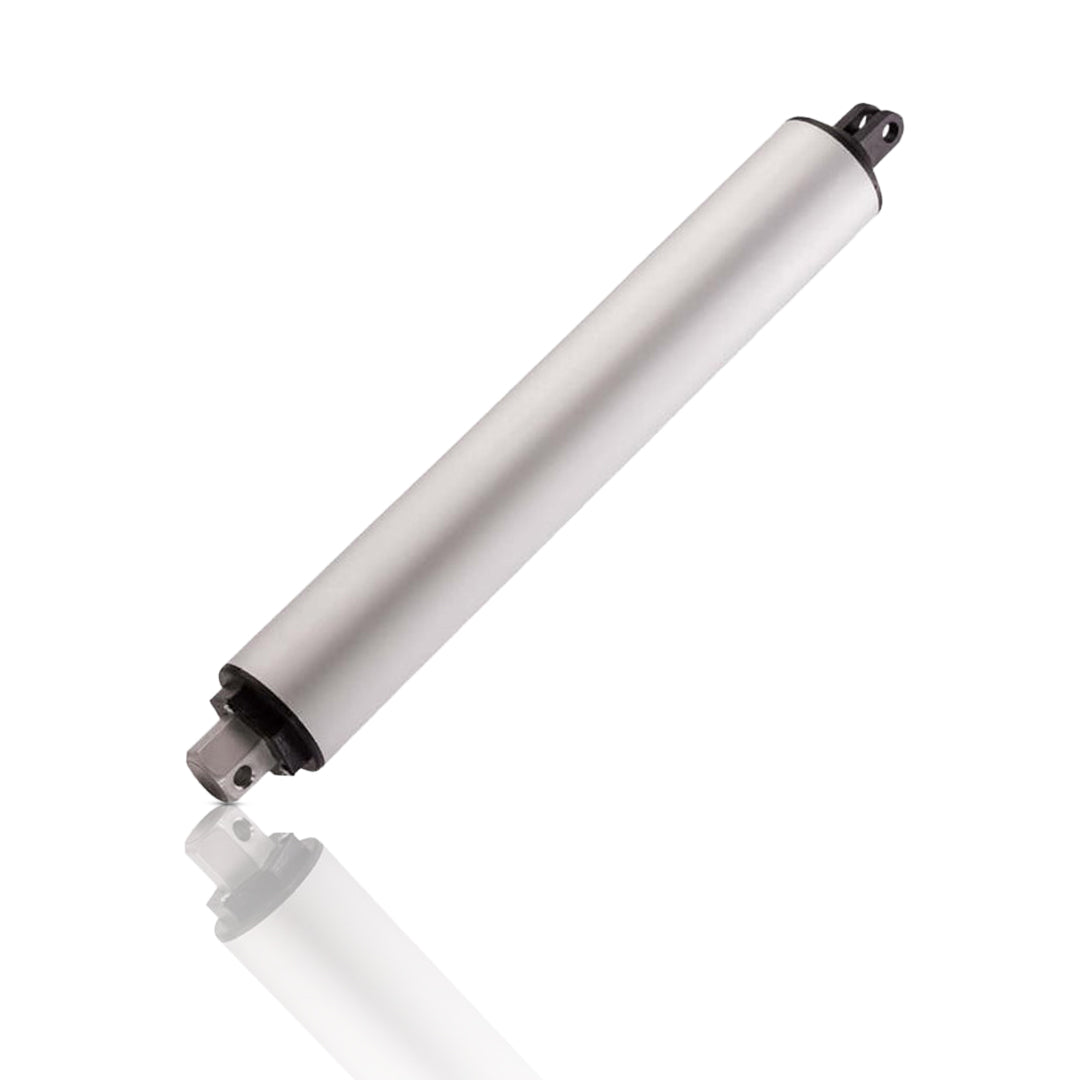

      To adapt to the changing landscape of modern industry, the High Speed Actuator line was developed. Moving at a staggering 9 inches per second under no load, and 4.5 inches per second when at full capacity, this line of linear actuators are ready to serve any high speed application with ease. There is one variant of High Speed Actuator which we offer, which has a dynamic force of 22 lbs. and a static force of 44 lbs. Featuring factory built-in limit switches, an aluminum casing to shed weight, and first rate internal materials to keep noise and vibration as low as possible. All this bundles together to serve up quiet, smooth, and reliable operation. As with all of our actuators, this line up comes with clevis mounting points on either end for simple and quick installment with the use of the MB8 Mounting Bracket.

      Specifications
      Model FA-RA-22-12-XX
      Dynamic Force 22 lb.
      Static Force 44 lb.
      Speed ("/S) 4.5" (9" at no load)
      Current 5A max
      Duty Cycle 20% at 100% load, 50% at 25% of load , absolute max. 5 mins continuous use
      IP Rating 54
      Input 12v DC
      Feedback None
      Synchronous Capability None, 5-10% variation in speed
      Operational Temperature -26°C/65°C (-15°F/150°)
      Limit Switch Built-in (factory preset)
      Safety Certifications CE, ROHS
      Cable Length 3 feet
      Bracket(s) MB8

      Stroke Retracted Length Extended Length Weight Step File
      2" 11.5" 13.5" 3.5 lbs FA-RA-22-12-2
      4" 13.5" 17.5" 3.75 lbs FA-RA-22-12-4
      6" 15.5" 21.5" 4 lbs FA-RA-22-12-6
      8" 17.5" 25.5" 4.25 lbs FA-RA-22-12-8
      10" 19.5" 29.5" 4.6 lbs FA-RA-22-12-10
      12" 21.5" 33.5" 4.8 lbs FA-RA-22-12-12
      18" 27.5" 45.5" 6.0 lbs FA-RA-22-12-18
      24" 33.25" 61.25" 6.75 lbs FA-RA-22-12-24
      28" 37.25" 65.25" 7.25 lbs FA-RA-22-12-28
      32" 41.25" 69.25" 7.75 lbs FA-RA-22-12-32
      36" 44.5" 80.5" 8.50 lbs
      38" 46.5" 84.5" 9 lbs.
      Technical Drawings
      High Speed Actuator Technical Drawing
      Performance Graph
      High Speed Performance Graph jpg
      3D Model Downloads (.STEP)

      22lb Force

      Wiring Diagram

      Click here to view our wiring diagram generator to help you set up your actuator system

      Wiring Diagram Generator
