Doppler Effect Interactive Calculator

The Doppler Effect Calculator computes frequency shifts for moving sources and observers in various media. This phenomenon affects radar systems, medical ultrasound, astronomical spectroscopy, traffic enforcement, and acoustic engineering. Understanding frequency shifts enables engineers to design velocity measurement systems, compensate for motion in communication links, and interpret spectral data from moving objects.

📐 Browse all free engineering calculators

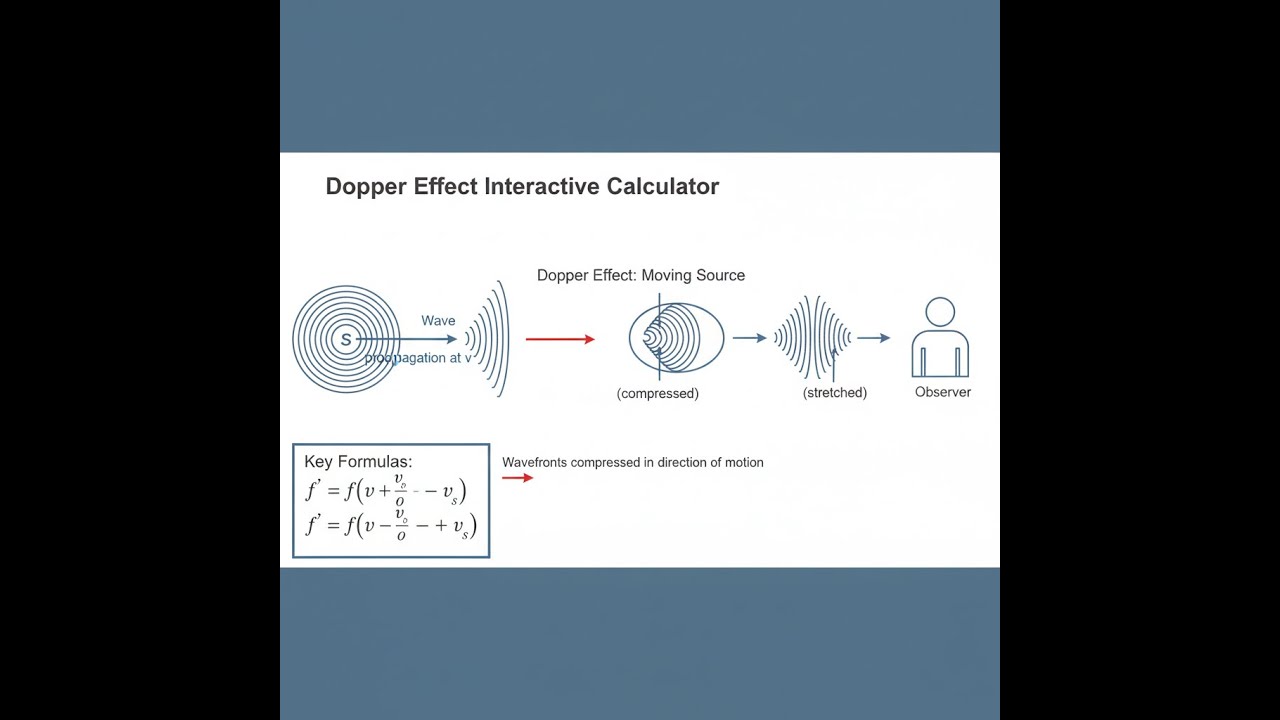

Doppler Effect Diagram

Interactive Doppler Effect Calculator

Governing Equations

Theory & Practical Applications

The Doppler Effect represents a fundamental wave phenomenon where the observed frequency of a wave differs from its emitted frequency due to relative motion between source and observer. This frequency shift results from the compression or stretching of wavefronts in the direction of motion, affecting applications from traffic radar to astronomical spectroscopy. The classical Doppler formula applies to mechanical waves in media, while electromagnetic waves require relativistic treatment at high velocities.

Physical Mechanism and Wave Compression

When a source moves toward an observer, it "catches up" with previously emitted wavefronts, effectively compressing the wavelength in the forward direction. Each successive wavefront is emitted from a position closer to the observer, reducing the spatial separation between crests. For a source moving at velocity v_s toward a stationary observer, the wavelength compression factor equals (v - v_s)/v, where v is the wave speed. This compression directly increases the observed frequency since f' = v/λ', making the pitch higher for sound waves or the color bluer for light.

The asymmetry between source and observer motion in classical Doppler theory often surprises engineers. A source moving toward a stationary observer at 30 m/s produces a different frequency shift than an observer moving toward a stationary source at 30 m/s. This distinction arises because wave propagation depends on the medium for mechanical waves. The source velocity v_s affects how closely wavefronts are emitted, while observer velocity v_o affects how quickly the observer encounters successive wavefronts. For electromagnetic waves in vacuum (no medium), only the relative velocity matters, requiring the symmetric relativistic formula.

Radar and Velocity Measurement Systems

Traffic enforcement radar operates at 24.15 GHz or 34.7 GHz, transmitting continuous waves that reflect off moving vehicles. The returned signal experiences a double Doppler shift: once when the wave encounters the moving vehicle, and again when the reflected wave returns to the stationary radar unit. For a vehicle approaching at velocity v, the observed frequency shift becomes Δf = 2f₀v/c, where c is the speed of light. At 24.15 GHz, a vehicle traveling 30 m/s (108 km/h, 67 mph) produces a Doppler shift of 4.83 kHz—easily measured by modern electronics.

Police radar units exploit this relationship with high precision. The factor-of-two enhancement from the double Doppler shift improves measurement sensitivity, but also doubles any errors in angle estimation. Radar must strike the vehicle nearly head-on; a 20° angle reduces the effective Doppler shift by cos(20°) = 0.94, causing a 6% speed underestimate. Modern lidar systems measure time-of-flight rather than frequency shift, avoiding Doppler effects but requiring pulsed operation and achieving comparable accuracy through different physics.

Medical Ultrasound Doppler Imaging

Medical ultrasound Doppler measures blood flow velocity by detecting frequency shifts in reflected ultrasound waves. Operating typically at 2-10 MHz, these systems transmit continuous or pulsed ultrasound into tissue. Red blood cells moving toward the transducer return higher-frequency echoes; those moving away return lower frequencies. The Doppler equation for medical ultrasound includes the cosine of the beam angle: Δf = 2f₀v·cos(θ)/c, where c is the speed of sound in tissue (~1540 m/s) and θ is the angle between the ultrasound beam and blood flow direction.

A critical limitation emerges at steep angles: if the ultrasound beam strikes a blood vessel at 80° to flow direction, cos(80°) = 0.174, reducing the Doppler signal by 83%. Clinicians must maintain beam angles below 60° for reliable measurements, creating geometric constraints on transducer placement. Color Doppler imaging maps this frequency shift to colors (red for flow toward, blue for flow away), revealing turbulent flow patterns around valve stenoses or arterial plaques. Pulsed-wave Doppler enables depth-resolved velocity profiling by sampling echoes from specific tissue depths, trading off temporal resolution for spatial specificity.

Astronomical Spectroscopy and Redshift

Astronomical objects exhibit Doppler shifts across the electromagnetic spectrum, revealing radial velocities from stellar proper motions to cosmic expansion. The sodium D-line at 589.3 nm in laboratory conditions shifts to 589.9 nm in a star receding at 305 km/s—a shift of 0.6 nm corresponding to Δλ/λ = v/c = 0.00102. This relativistic Doppler effect enables measurement of stellar rotations, binary orbital velocities, and galactic recession speeds. Cosmological redshift from expanding space differs subtly from kinematic Doppler shift, but produces observationally similar spectral displacements.

High-precision radial velocity measurements detect exoplanets through stellar wobble. A Jupiter-mass planet in a one-year orbit induces a 12.5 m/s stellar reflex velocity. At visible wavelengths (~550 nm), this produces a Doppler shift of only 0.000023 nm—requiring spectrographs with resolving power R = λ/Δλ exceeding 100,000 and careful calibration against iodine absorption cells or laser frequency combs. Modern instruments achieve 1 m/s precision, detecting Neptune-mass planets in Mercury-like orbits. This represents one of the most demanding applications of Doppler spectroscopy, pushing measurement precision to 1 part in 300 million.

Worked Example: Aircraft Doppler Radar Navigation

Problem: A Doppler navigation radar aboard an aircraft flying at 215 m/s transmits a 13.325 GHz signal at a 45° forward angle to the ground. The radar receives the reflected signal from the ground below. Calculate: (a) the Doppler shift frequency due to the aircraft motion, (b) the double-Doppler shift observed by the radar, (c) the velocity error if the beam angle drifts to 47° during turbulence, and (d) the wavelength of the transmitted and received signals.

Given values:

• Aircraft velocity: v = 215 m/s
• Transmitted frequency: f₀ = 13.325 GHz = 1.3325 × 10¹⁰ Hz
• Beam angle to ground: θ = 45°
• Speed of light: c = 2.998 × 10⁸ m/s
• Perturbed angle: θ' = 47°

Solution:

(a) Single Doppler shift frequency:

The component of aircraft velocity along the beam direction equals v·cos(45°). The Doppler shift for electromagnetic waves uses the relativistic formula, but at v/c = 215/(2.998×10⁸) = 7.17×10⁻⁷, the classical approximation suffices:

Δf₁ = f₀ × (v·cos(θ)/c)
Δf₁ = 1.3325×10¹⁰ × (215 × cos(45°) / 2.998×10⁸)
Δf₁ = 1.3325×10¹⁰ × (152.03 / 2.998×10⁸)
Δf₁ = 1.3325×10¹⁰ × 5.072×10⁻⁷
Δf₁ = 6,758 Hz = 6.758 kHz

(b) Double-Doppler shift observed by radar:

The ground acts as a moving "reflector" from the perspective of the transmitted wave, then the aircraft acts as a moving receiver of the reflected wave. The total shift doubles:

Δf_total = 2 × Δf₁
Δf_total = 13,516 Hz = 13.516 kHz

The received frequency becomes f' = 13.325000000 GHz + 0.000013516 GHz = 13.325013516 GHz. This seemingly tiny fractional shift (Δf/f₀ = 1.014×10⁻⁶) is easily measured with modern frequency discriminators.

(c) Velocity error from 2° angle drift:

If turbulence shifts the beam to 47°:

Δf'_total = 2f₀ × (v·cos(47°)/c)
Δf'_total = 2 × 1.3325×10¹⁰ × (215 × 0.6820 / 2.998×10⁸)
Δf'_total = 13,022 Hz

The radar interprets this as an effective velocity:

v_measured = (Δf'_total × c) / (2f₀ × cos(45°))
v_measured = (13,022 × 2.998×10⁸) / (2 × 1.3325×10¹⁰ × 0.7071)
v_measured = 206.9 m/s

Velocity error = 215 - 206.9 = 8.1 m/s (3.8% underestimate)

This demonstrates why Doppler navigation systems require precise beam stabilization. A 2° angular error causes 8 m/s velocity error—unacceptable for precision navigation. Modern inertial reference systems compensate for aircraft attitude changes in real time.

(d) Transmitted and received wavelengths:

λ_transmitted = c / f₀ = 2.998×10⁸ / 1.3325×10¹⁰
λ_transmitted = 0.0225 m = 22.5 mm (K-band)

λ_received = c / f' = 2.998×10⁸ / 1.3325013516×10¹⁰
λ_received = 0.022499977 m = 22.499977 mm

The wavelength compression of 23 nanometers seems negligible, but this 1-ppm change is precisely what enables velocity measurement. The radar's phase detector compares transmitted and received signals, accumulating these tiny wavelength differences over thousands of cycles to extract velocity with meter-per-second precision.

Practical Limitations and Edge Cases

The classical Doppler formula breaks down at velocities approaching the wave speed. For sound in air at 343 m/s, a source moving at 300 m/s (Mach 0.87) produces a 7× frequency increase for observers directly ahead—a dramatic pitch shift. At v_s = v, the formula predicts infinite frequency, corresponding to the formation of a shock wave. Real supersonic sources create shock cones rather than continuous Doppler shifts, requiring different analysis based on Mach angle geometry.

Transverse Doppler effect, where motion is perpendicular to the line-of-sight, produces no classical shift but exhibits a relativistic time dilation shift of order (v/c)². For a satellite passing overhead at 7.5 km/s (orbital velocity), this produces a 3×10⁻⁹ fractional frequency shift—irrelevant for most applications but measurable by atomic clocks and critical for GPS timing corrections. GPS satellites must account for both velocity time dilation and gravitational redshift to maintain nanosecond timing precision.

Atmospheric refraction complicates Doppler lidar measurements of wind velocity. The laser beam refracts through temperature and pressure gradients, changing the effective beam angle. For a 30° elevation angle through a 10°C temperature inversion, refraction can alter the beam angle by 0.1°, causing a 0.015% velocity error—negligible for weather applications but significant for precision boundary-layer measurements. Modern lidar systems correct for refraction using atmospheric models and multiple beam geometries.
