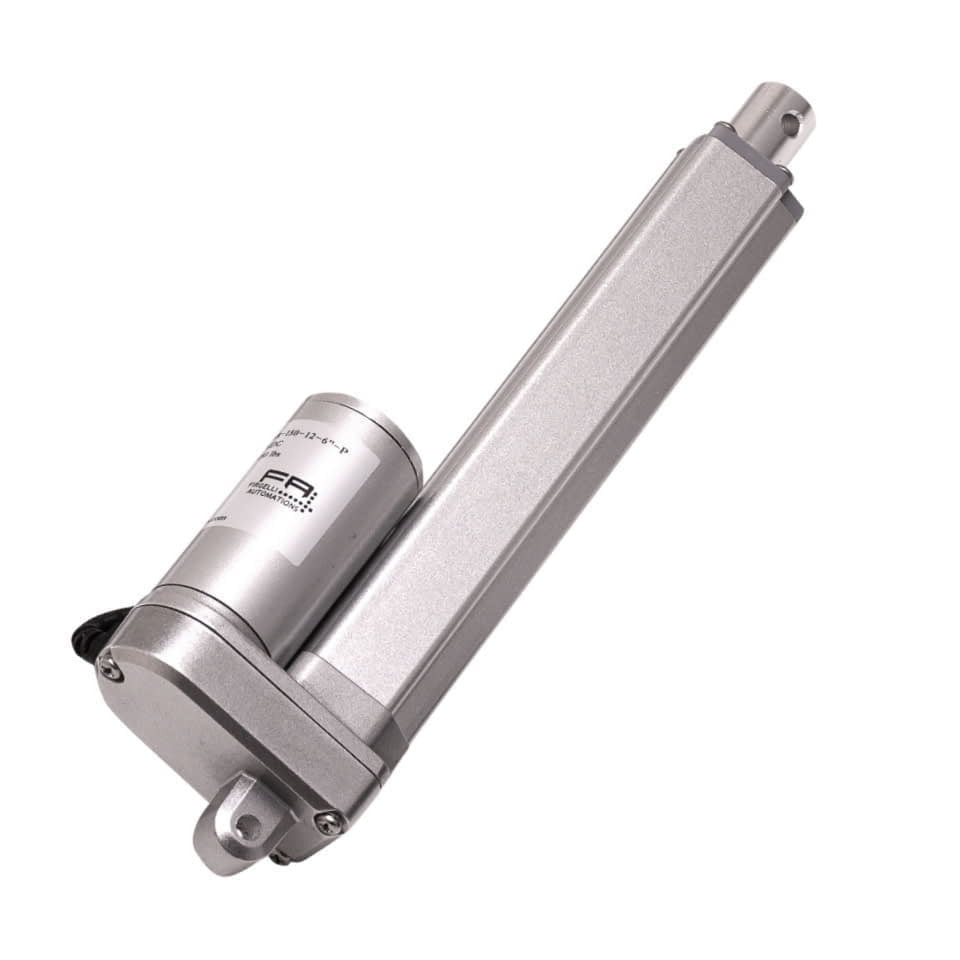

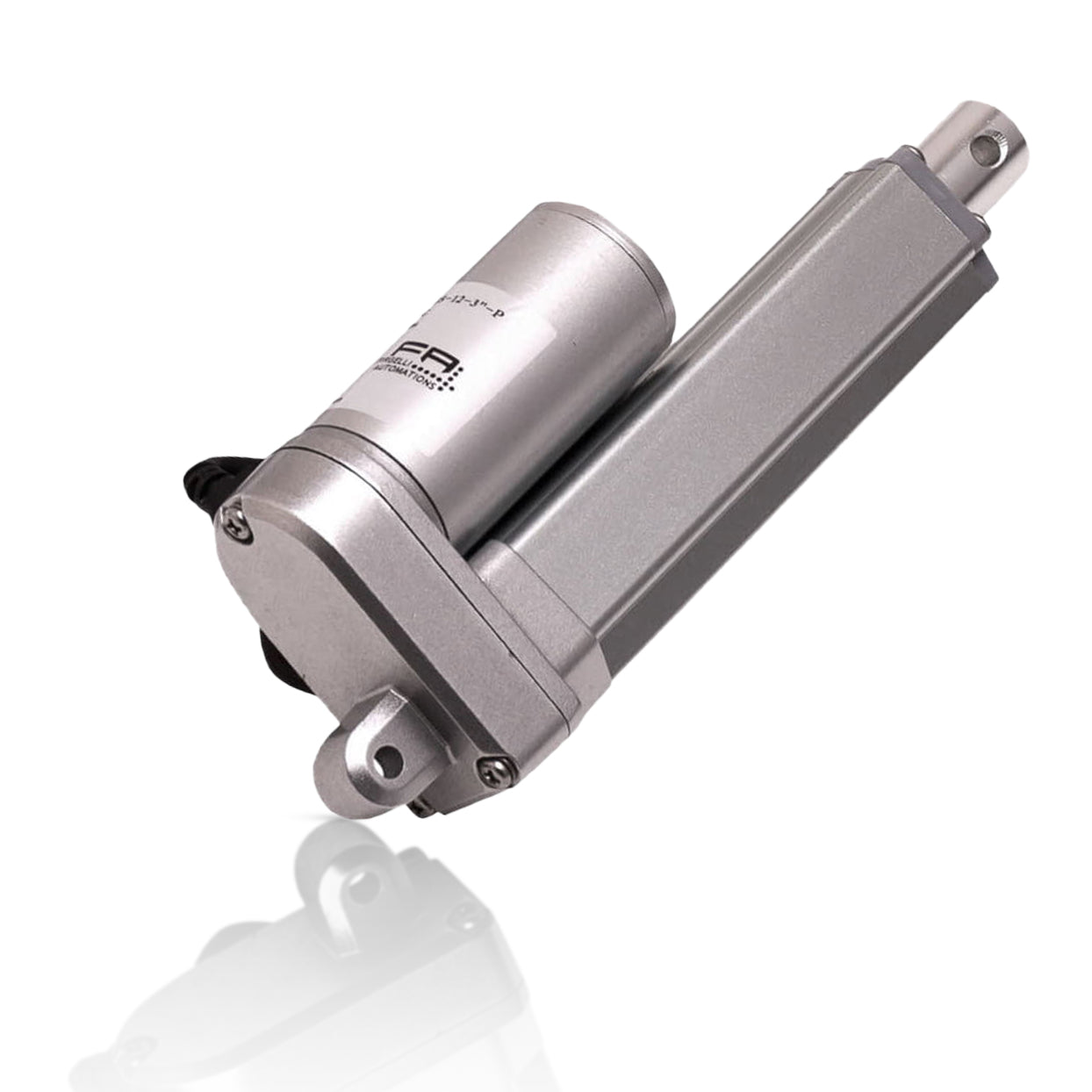

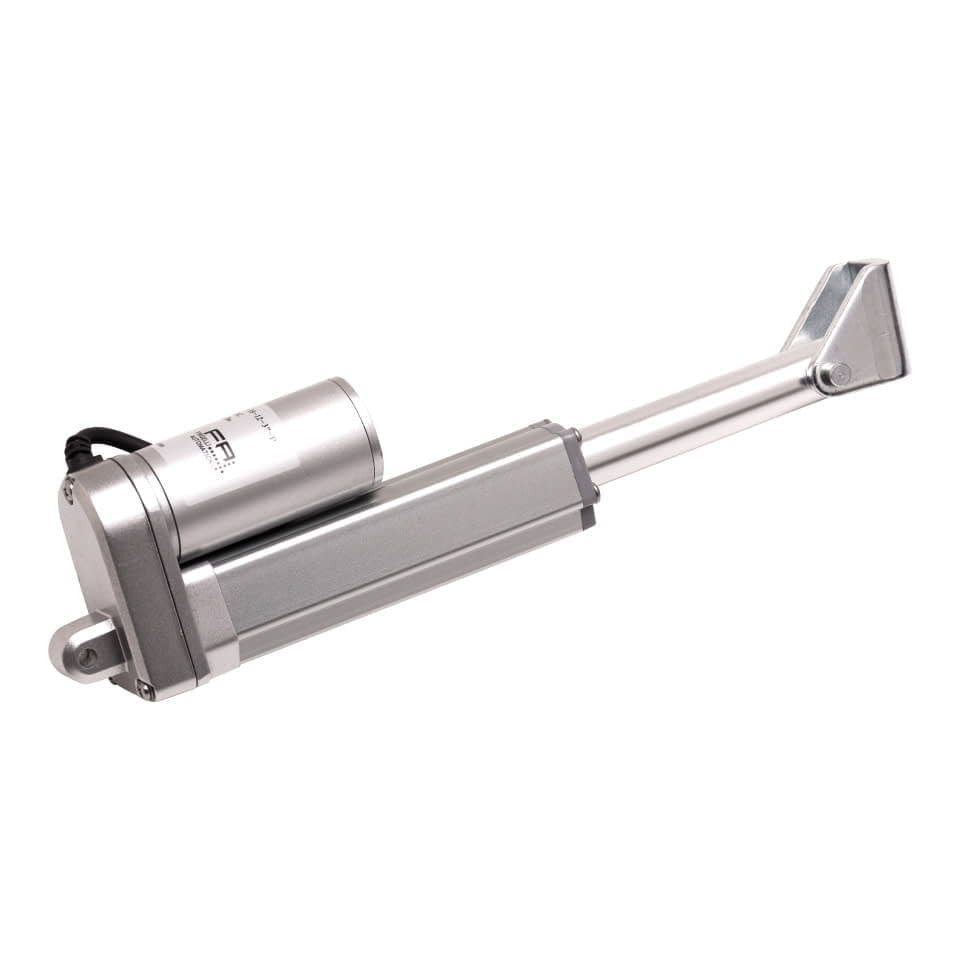

Motorized your idea’s with these compact and versatile Premium Linear Actuators.  Available in strokes from 1 to 30” and forces ranging from 35 – 200 lbs.  Manufactured from aerospace-grade aluminum and built-in limit switches for automatic end of stroke stopping, these Premium Actuators provide consistent 100% reliable performance with zero maintenance for all your automation projects, making you the Automation Expert.

Based on our popular Standard Classic Linear Actuator models, the Premium units retain the same compact and versatile body shape while incorporating several upgraded design features that provide:

  1. Enhanced corrosion resistance
  2. Longer unit life
  3. Quieter operation
  4. Increased durability
  5. Higher IP Rating - IP66 protection class offers total dust and debris protection and can withstand low-pressure jets of water from any direction, such as those used in cleaning procedures.
  6. Low noise design - operates at just 20 DB over ambient.
  7. Zinc alloy housing provides an excellent combination of strength, ductility, and impact strength.
  8. Save time and money with less repair downtime and maintenance hassle.

There are three force options available (35, 150, and 200 lbs); all three force options of the Premium Linear Actuators are capable of 500lbs static force. These units come equipped with built-in limit switches, are manufactured with high-grade aluminum outer and inner tubes, and come in various stroke lengths, these Premium Linear Actuators are the beginning of most home and product automation enterprises.

All of our units are CE and ROHS certified, and come with a 12-month mechanical warranty to keep your units serving you best. Our company values revolve around providing quick and friendly customer service that will follow your experience with our products and staff.

Specifications
Model FA-35-12-(X)-P FA-150-12-(X)-P FA-240-12-(X)-P
Dynamic Force 35 lbs 150 lbs 200 lb
Static Force 200 lbs 500 lbs 500 lbs
Speed ("/S) 2.0" .30" .24"
Gear Ratio 5:1 20:1 30:1
Duty Cycle 25% at 100% load, 50% at 25% of load , absolute max. 5 mins continuous use
IP Rating IP66
Screw Type ACME
Sound Rating 20 dB over Ambient
Input 12v DC
Max Draw 5 A
Clevis End 1/4" diameter
Operational Temperature -26°C/65°C (-15°F/150°)
Limit Switch Built in at each end of the stroke non-adjustable. For an Adjustable Limit switch actuator, cherck out our "Adjustable limit switch Actuator"
Safety Certifications CE
Wire Length 2.5 feet
Bracket(s)  MB1-P and/or MB-PB and with MB6-P Body Mounting Bracket and MB10 Rod End Bracket



Stroke  Retracted Length Extended Length Weight (lbs) STEP Files (35)(150)(200) STEP Files (400)
1"  5.53"  6.53" 1.60 FA-35(150)(200)-12-1-P.step FA-400-12-1-P.step
2"  6.53"   8.53" 1.68  FA-35(150)(200)-12-2-P.step FA-400-12-2-P.step
3"  7.53"   10.53" 1.84  FA-35(150)(200)-12-3-P.step FA-400-12-3-P.step
4"  8.53"  12.53" 1.92  FA-35(150)(200)-12-4-P.step FA-400-12-4-P.step
6"  10.53"   16.53" 2.12  FA-35(150)(200)-12-6-P.step FA-400-12-6-P.step
9"  13.53"  22.53" 2.48  FA-35(150)(200)-12-9-P.step FA-400-12-9-P.step
12"  16.53"  28.53" 2.78  FA-35(150)(200)-12-12-P.step FA-400-12-12-P.step
18"  22.53"  40.53" 3.40  FA-35(150)(200)-12-18-P.step FA-400-12-18-P.step
24"  28.53"  52.53"  4.02  FA-35(150)(200)-12-24-P.step FA-400-12-24-P.step
30"  34.53" 64.53" 4.68  FA-35(150)(200)-12-30-P.step FA-400-12-30-P.step
