Heavy Duty Rod Actuators

Heavy Duty Rod Actuators

USD
Model #
Force
Stroke
Quantity
bulk discount

Save on your order when purchasing our Actuators in large volumes. Discount will be calculated at checkout.

Min. Quantity Discount
11 20 % OFF
31 25 % OFF
50 30 % OFF
200 40 % OFF
qty limit cart limit
  • Description

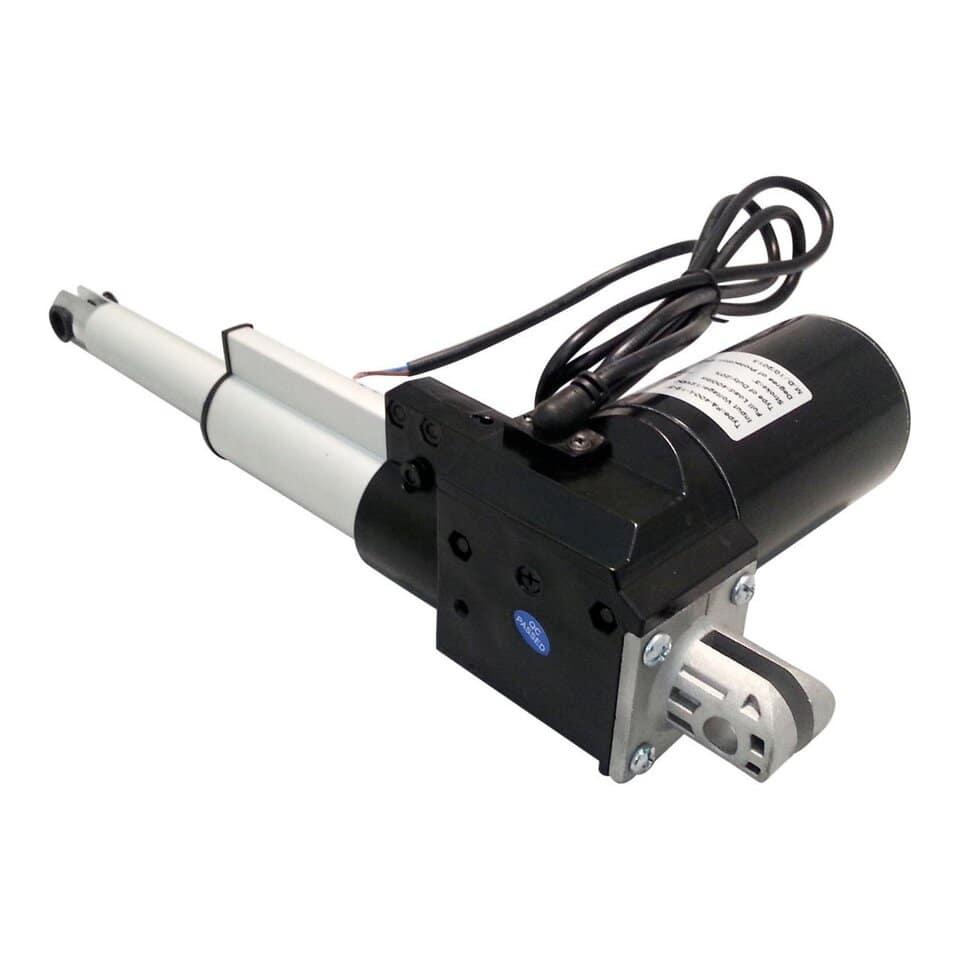

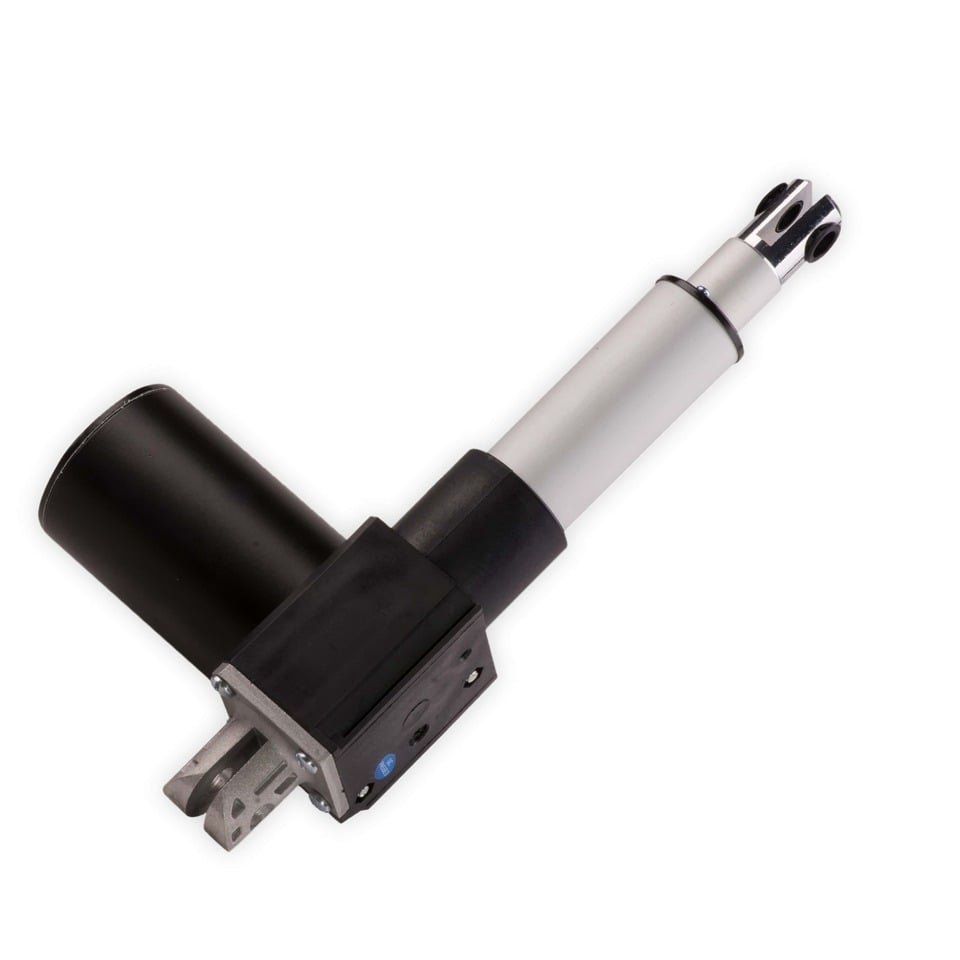

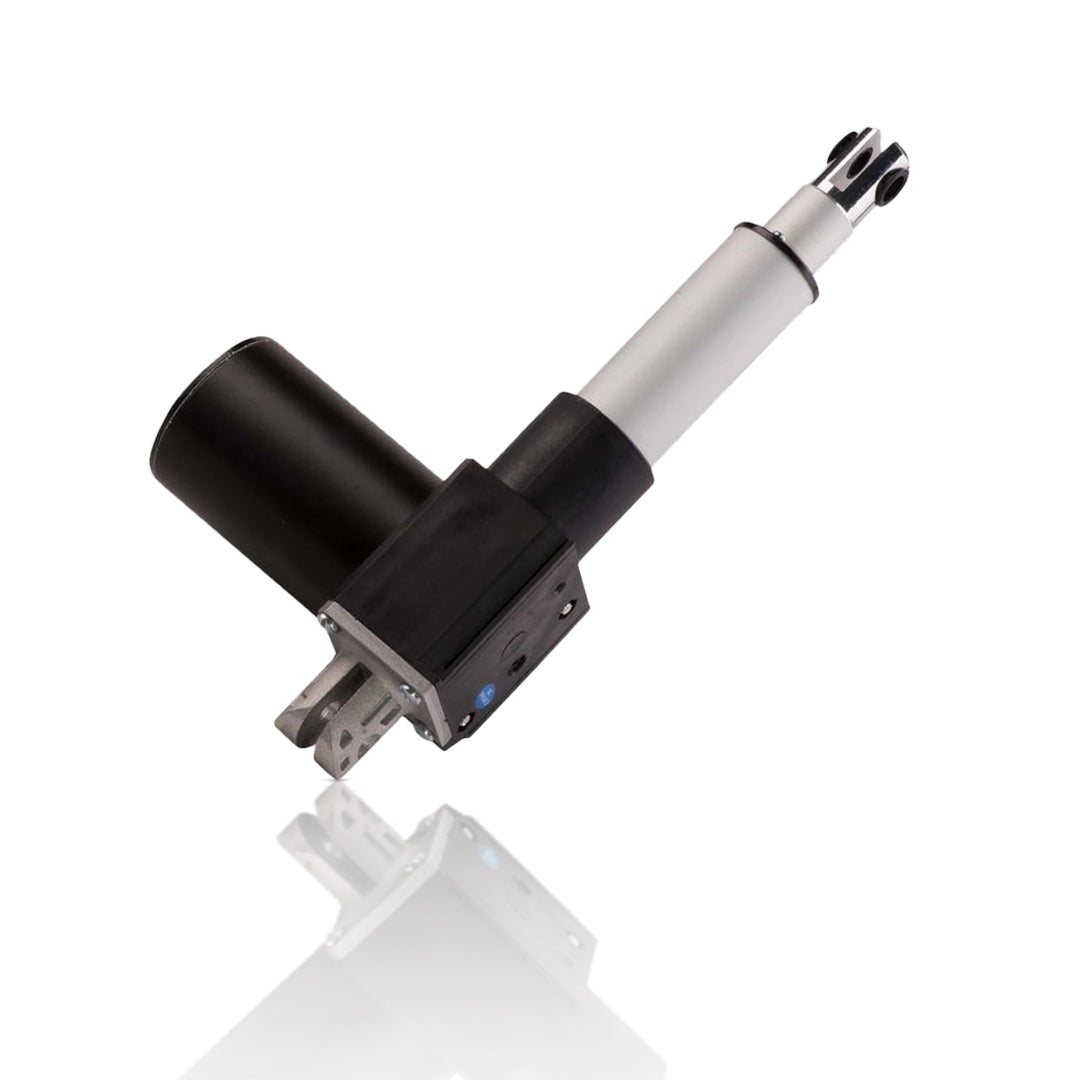

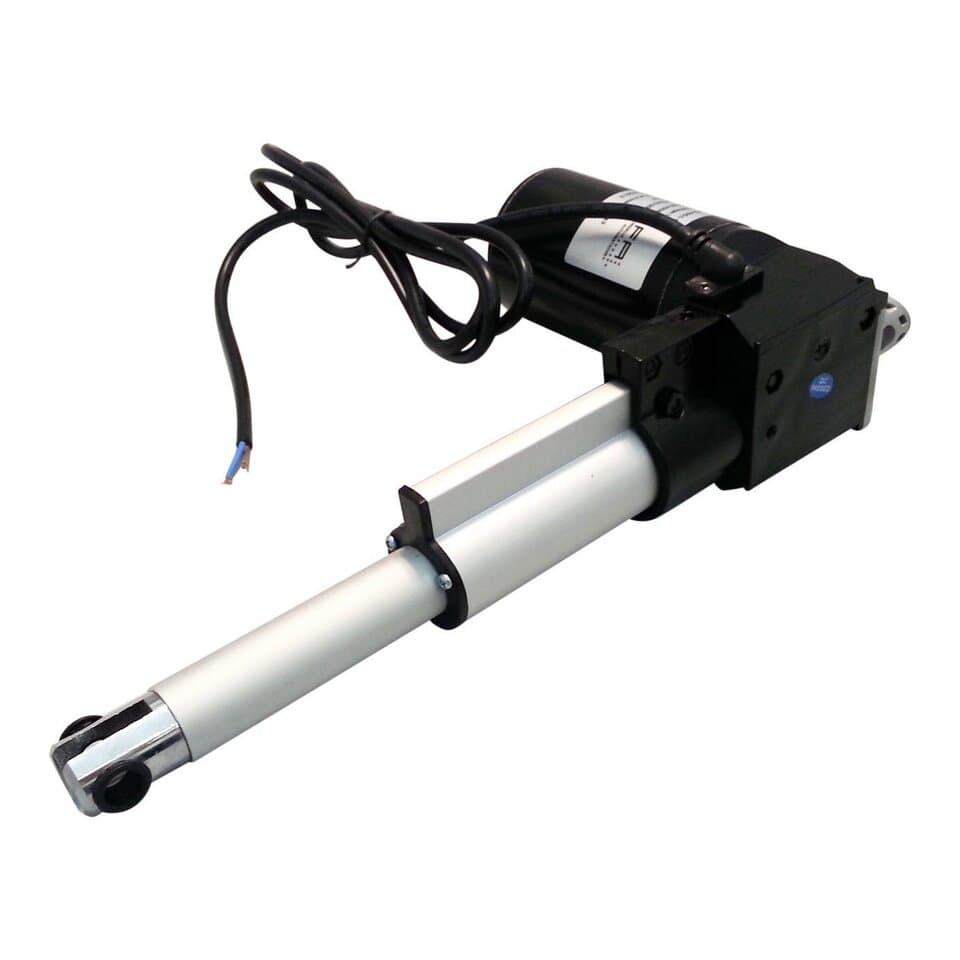

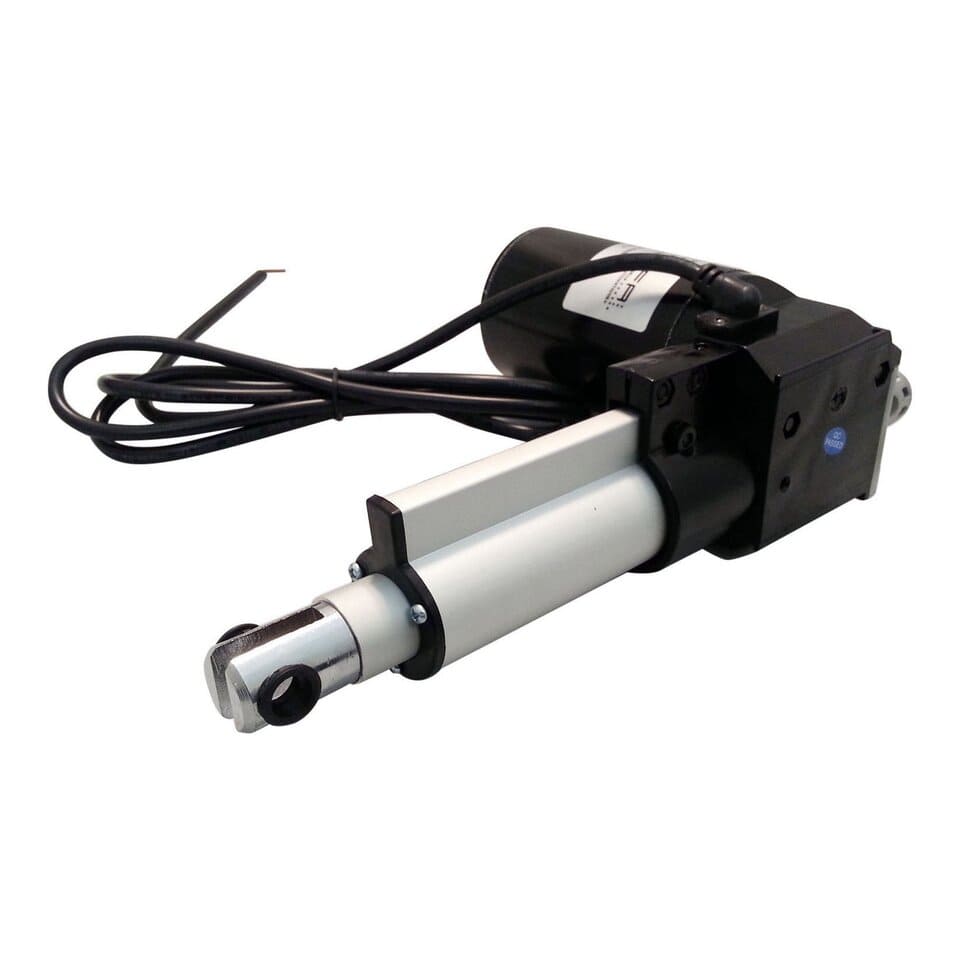

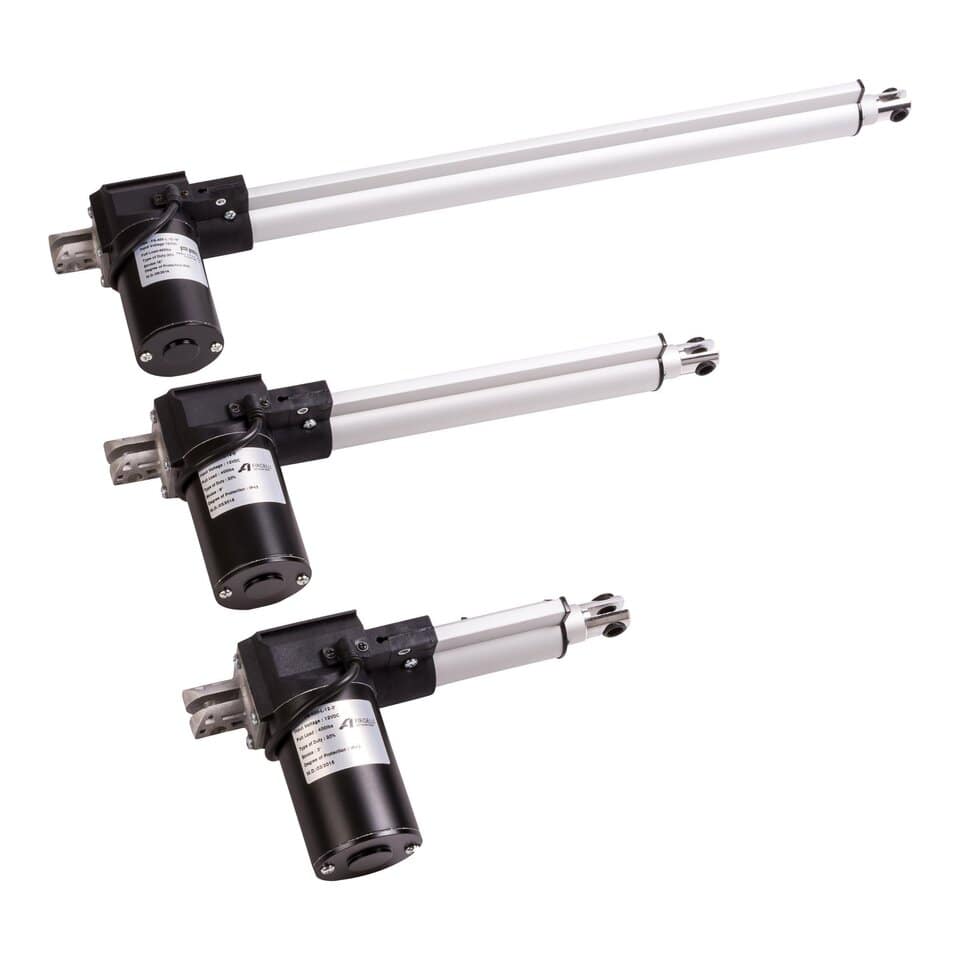

    These Heavy Duty Linear Actuators come in a variety of forces from 200lbs up to 1,000lbs force and strokes from 3" to 30" or custom strokes, if requested. They are a worm gear drive mechanism which means they are very quiet and offer a high efficiency as a result.

    CAD models of this actuator can be found under Resources/3D Files. For further information review the specifications and technical drawings down below or visit our tutorials page for instructions on how to use this actuator with switches, remotes, speed controllers, and Arduino.

    Note: 200 lbs force in only available in 3", 6" and 8" stroke

    The Heavy Duty line was developed with high standards in mind. Our clients demand the best quality and performance for their money, inspiring us to come up with such a rugged design. This versatile unit features an aluminum shaft to shed weight, internal limit switches, an aluminum alloy inner tube, as well as a high performance 12 volt DC motor which is capable of producing between 200 and 1000 lbs. (90-453 kg) of force.

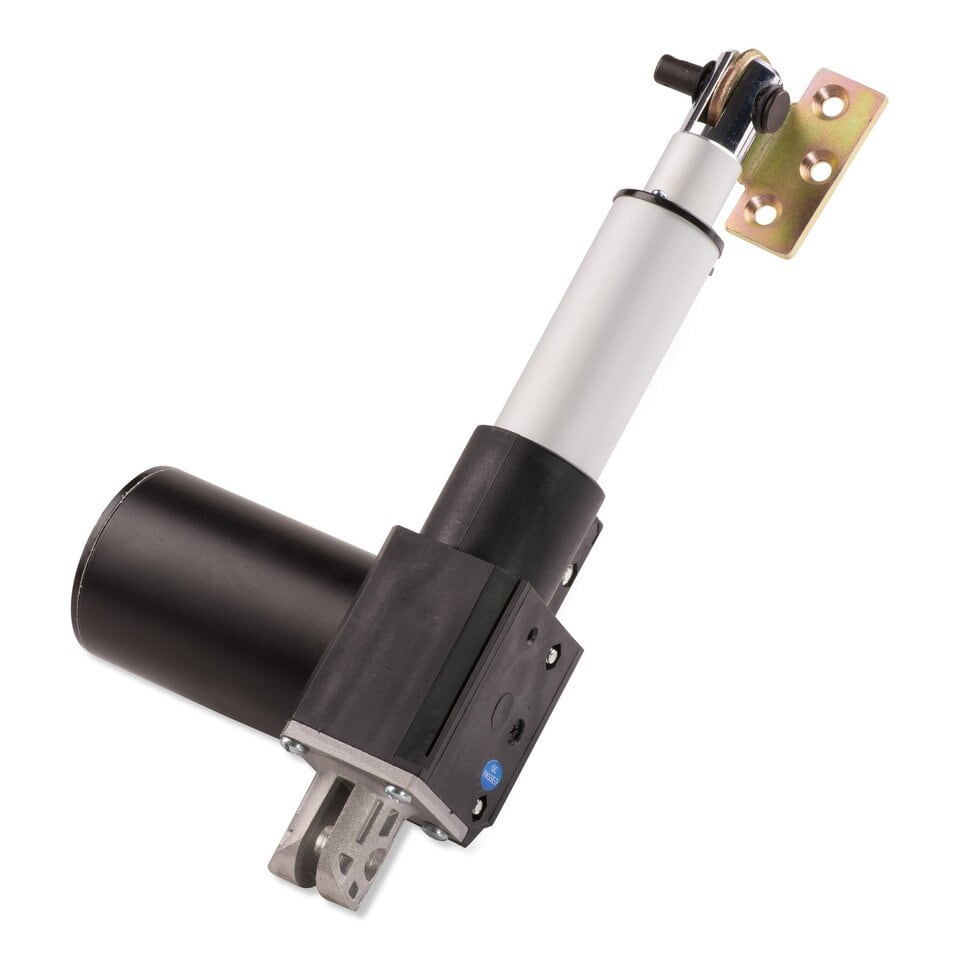

    No matter your application, installation doesn’t need to be a hassle. Required components consist of just two brackets, one for either side, with quick release pins for easy fitment and set-up. Controlling the unit is just as easy via a 2-wire system, making this unit a ‘plug and play’ type accession unique to Firgelli Automations.

    *Due to the drive gearing method, this actuator will back drive under higher loads with no power applied to the actuator. Using a gas spring of the correct rating will alleviate the back drive. Another possibility is to use a relay in SPDT to work as a back-emf brake. See this tutorial for more information

  • Specifications

    Model FA-200-L-12-XX FA-400-L-12-XX FA-1000-L-12-XX
    Dynamic Force 200 lb 400 lb 1000 lb
    Static Force (backdriving threshold) 225 lb 450 lb  900 lb
    Speed ("/S) @ Full Load 0.8" 0.4" 0.2"
    Duty Cycle 20% at 100% load, 50% at 25% of load ,5mins max. continous use
    IP Rating 43
    Screw Type Worm Gear
    Input 12v DC
    Max Draw 5 A
    Operational Temperature -26°C/65°C (-15°F/150°F)
    Wire Gauge 16
    Limit Switch Built-in (factory preset)
    Safety Certification CE
    Bracket(s) MB3 or MB3U



    Stroke Retracted Length Extended Length Weight STEP Files
    3" 9.88" 12.88" 4.5 lbs FA-(F)-L-12-3
    6" 12.88" 18.88" 5.1 lbs FA-(F)-L-12-6
    8" 14.88" 22.88" 5.3 lbs FA-(F)-L-12-8
    9" 15.88" 24.88" 5.5 lbs FA-(F)-L-12-9
    12" 18.88" 30.88" 5.9 lbs FA-(F)-L-12-12
    15" 21.88" 36.88" 6.1 lbs FA-(F)-L-12-15
    18" 24.88" 42.88" 6.7 lbs FA-(F)-L-12-18
    24" 30.88" 54.88" 7.4 lbs FA-(F)-L-12-24
    30" 36.88" 66.88" 8.2 lbs FA-(F)-L-12-30

     *Stroke length tolerance +/- 0.125"

  • Tech Drawing

    Heavy Duty Actuator Tech Drawing

  • Performance Graph

  • Video

    Heavy Duty Linear Actuator Review

  • Video Comparison

    Heavy Duty vs Premium High Force Linear Actuator

  • Resources
  • Description

    These Heavy Duty Linear Actuators come in a variety of forces from 200lbs up to 1,000lbs force and strokes from 3" to 30" or custom strokes, if requested. They are a worm gear drive mechanism which means they are very quiet and offer a high efficiency as a result.

    CAD models of this actuator can be found under Resources/3D Files. For further information review the specifications and technical drawings down below or visit our tutorials page for instructions on how to use this actuator with switches, remotes, speed controllers, and Arduino.

    Note: 200 lbs force in only available in 3", 6" and 8" stroke

    The Heavy Duty line was developed with high standards in mind. Our clients demand the best quality and performance for their money, inspiring us to come up with such a rugged design. This versatile unit features an aluminum shaft to shed weight, internal limit switches, an aluminum alloy inner tube, as well as a high performance 12 volt DC motor which is capable of producing between 200 and 1000 lbs. (90-453 kg) of force.
    No matter your application, installation doesn’t need to be a hassle. Required components consist of just two brackets, one for either side, with quick release pins for easy fitment and set-up. Controlling the unit is just as easy via a 2-wire system, making this unit a ‘plug and play’ type accession unique to Firgelli Automations.

    *Due to the drive gearing method, this actuator will back drive under higher loads with no power applied to the actuator. Using a gas spring of the correct rating will alleviate the back drive. Another possibility is to use a relay in SPDT to work as a back-emf brake. See this tutorial for more information

  • Specifications
    Model FA-200-L-12-XX FA-400-L-12-XX FA-1000-L-12-XX
    Dynamic Force 200 lb 400 lb 1000 lb
    Static Force (backdriving threshold) 225 lb 450 lb  900 lb
    Speed ("/S) @ Full Load 0.8" 0.4" 0.2"
    Duty Cycle 20% at 100% load, 50% at 25% of load ,5mins max. continous use
    IP Rating 43
    Screw Type Worm Gear
    Input 12v DC
    Max Draw 5 A
    Operational Temperature -26°C/65°C (-15°F/150°F)
    Wire Gauge 16
    Limit Switch Built-in (factory preset)
    Safety Certification CE
    Bracket(s) MB3 or MB3U



    Stroke Retracted Length Extended Length Weight STEP Files
    3" 9.88" 12.88" 4.5 lbs FA-(F)-L-12-3
    6" 12.88" 18.88" 5.1 lbs FA-(F)-L-12-6
    8" 14.88" 22.88" 5.3 lbs FA-(F)-L-12-8
    9" 15.88" 24.88" 5.5 lbs FA-(F)-L-12-9
    12" 18.88" 30.88" 5.9 lbs FA-(F)-L-12-12
    15" 21.88" 36.88" 6.1 lbs FA-(F)-L-12-15
    18" 24.88" 42.88" 6.7 lbs FA-(F)-L-12-18
    24" 30.88" 54.88" 7.4 lbs FA-(F)-L-12-24
    30" 36.88" 66.88" 8.2 lbs FA-(F)-L-12-30

     *Stroke length tolerance +/- 0.125"

  • Tech Drawing

    Heavy Duty Actuator Tech Drawing

  • Performance Graph

  • Video

    Heavy Duty Linear Actuator Review

  • Video Comparison

    Heavy Duty vs Premium High Force Linear Actuator
