Bullet Series Mini Actuators

      Bullet Series Mini Actuators

      USD
      Model #
      Voltage
      Force
      Stroke Length
      Quantity
      qty limit cart limit
      In Stock

      Add

      Warranty Plus

      Warranty Plus:
      Your product will be replaced (including free shipping) with a new one within 12 months of purchase, even if it is damaged due to improper wiring, incorrect usage, a problem in the electrical installation or any other circumstance.

      Standard Warranty:
      12 month warranty comes with every purchase. Covers malfunctions when it is used within the described conditions/limits.

       +8%

      Bulk Discount

      Save on your order when purchasing our Actuators in large volumes. Discount will be calculated at checkout.

      Min. Quantity Discount
      11 20 % OFF
      31 25 % OFF
      50 30 % OFF
      200 40 % OFF

      Shipping Cost Estimator

      Note: You must have items in your cart already before you can see the estimated costs to ship your cart. This shipping tool will estimate the total shipping cost for your entire basket.

      Description

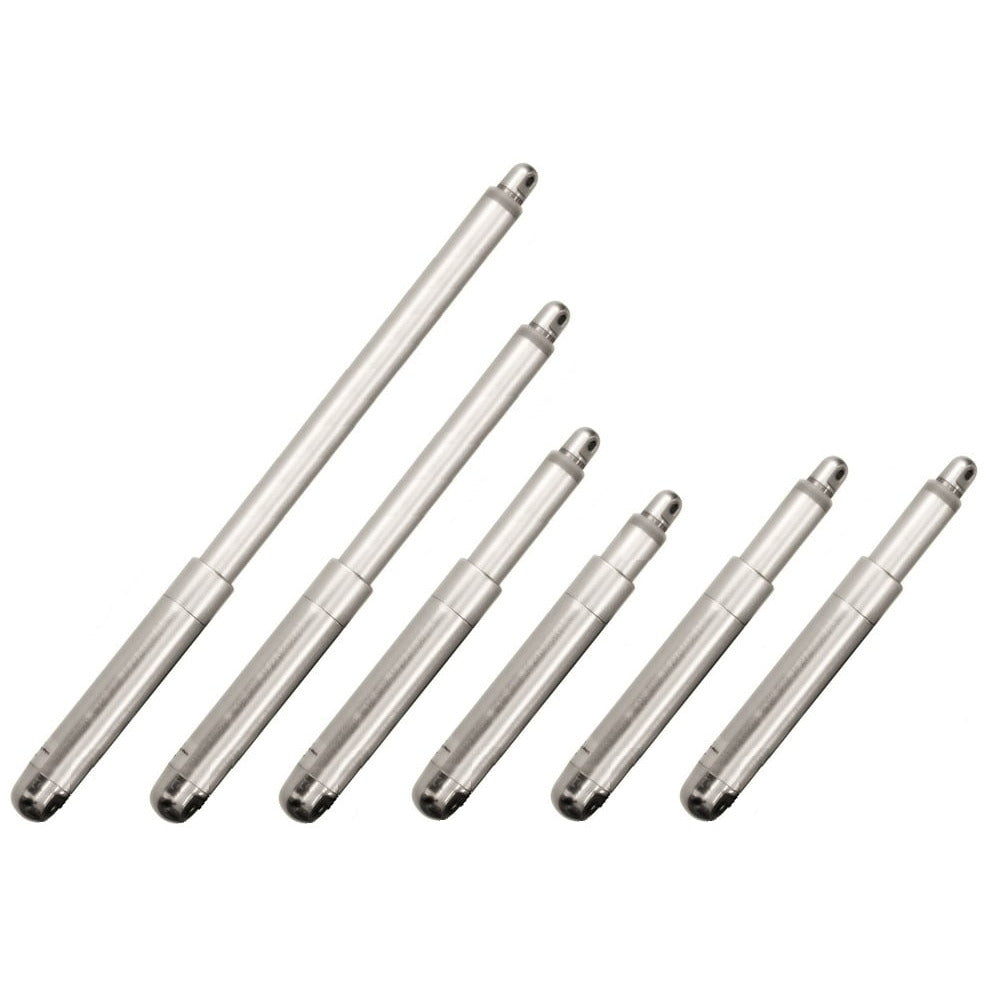

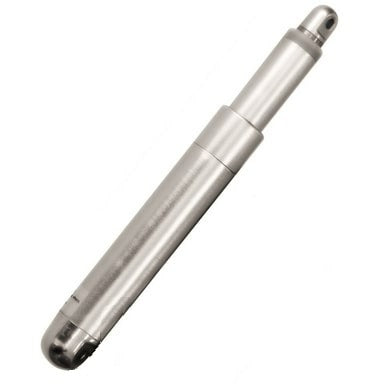

      The new Bullet Series Mini Actuator is very compact and powerful for its size.  Made from T6061 Aluminum, they are light weight and fitted with high quality Japanese motors to ensure a long life span and low operating noise, plus an IP66 rating. We offer them as standard in 12v or 24v, with two force options and stroke lengths from 1 to 8 inches. Pairs with MB14 brackets, which are designed specifically for this actuator.

      These Actuators come with an integrated force sensor (in the form of an over-current protection circuit), this means if they bump into something, or when they get to the end of their stroke, they automatically stop moving until you either change direction or remove the load. Please be aware that this model does not have internal limit switches. This is a great new safety mechanism and offers many applications from Skylight Window openers to Automotive motion control, perfect for applications where space is tight.

      CAD models of this actuator can be found under Resources/3D Files. For further information review the specifications and technical drawings down below or visit our tutorials page for instructions on how to use this actuator with switches, remotes, speed controllers, and Arduino.

      Accessories sold separately include: Remote Controls - Switches - Micro-Controllers - Power Supplies

      Specifications

      FA-B-20-12V

      FA-B-20-24V

      FA-B-110-12V

      FA-B-110-24V

      Push/Pull Force 20 lb 20 lb 110 lb 110 lb
      Self Locking Force 1.5 to 3 times Push/Pull Force 30-60 lb 165-330 lb 165-330 lb
      Speed ("/s) 0.433 0.433 0.138 0.138
      Gear Ratio 49 49 139 139
      Voltage 12V 24V 12V 24V
      Max Current 1.4A 0.7A 1.4A 0.7A
      Duty Cycle 10%
      Operating Temp. Range 41°F to 104°F (5°C to 40°C)
      Over Current Circuit Protection Built In
      Circuit Breaking Current 1A 0.5A 1A 0.5A
      Circuit Breaking Response Time 0.1 to 0.5 Seconds
      Feedback None
      Synchronous Capability None, 5-10% variation in speed
      Storage Temp. Range -40°F to 158°F (-40°C to +70°C)
      IP Rating 66
      No Load Noise Level 50-70 dB
      Diameter 1.024”
      Outer Housing Material Aluminum T6061
      Expansion Rod Material Stainless Steel 304
      Cable Length 4 feet
      Brackets MB14

      Stroke Length Retracted Length Extended Length Weight STEP File
      1” 7.693” 8.693” 0.715 lb FA-B-XX-12-1.step
      2” 8.693” 10.693” 0.77 lb FA-B-XX-12-2.step
      3” 9.693” 12.693” 0.825 lb FA-B-XX-12-3.step
      4” 10.693” 14.693” 0.88 lb FA-B-XX-12-4.step
      5” 11.693” 16.693” 0.935 lb FA-B-XX-12-5.step
      6” 12.693” 18.693” 0.99 lb FA-B-XX-12-6.step
      7” 13.693” 20.693” 1.045 FA-B-XX-12-7.step
      8” 14.693” 22.693” 1.10 lb FA-B-XX-12-8.step
      Technical Drawings
      Bullet Series Technical Drawing
      Curve Graphs

      Curve Graphs

      3D Model Downloads (.STEP)

      20lb and 110lb Force

      Wiring Diagram

      Click here to view our wiring diagram generator to help you set up your actuator system

      Wiring Diagram Generator
