      Description

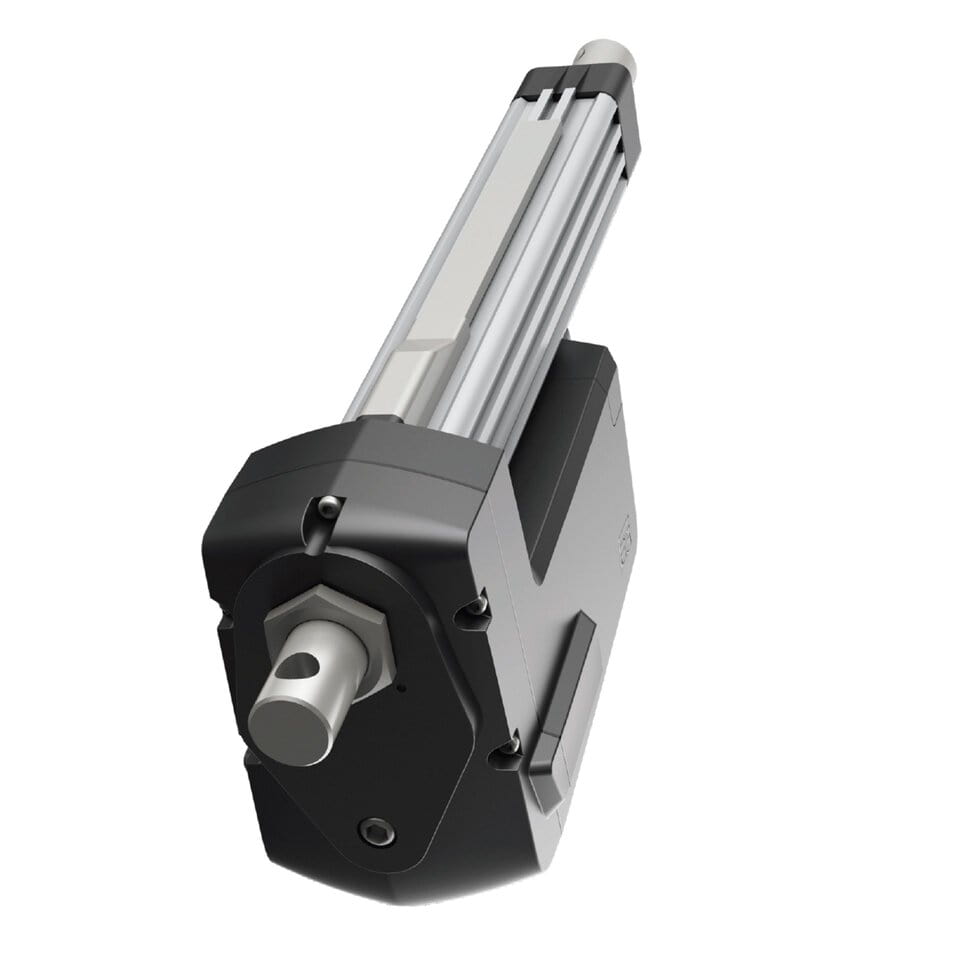

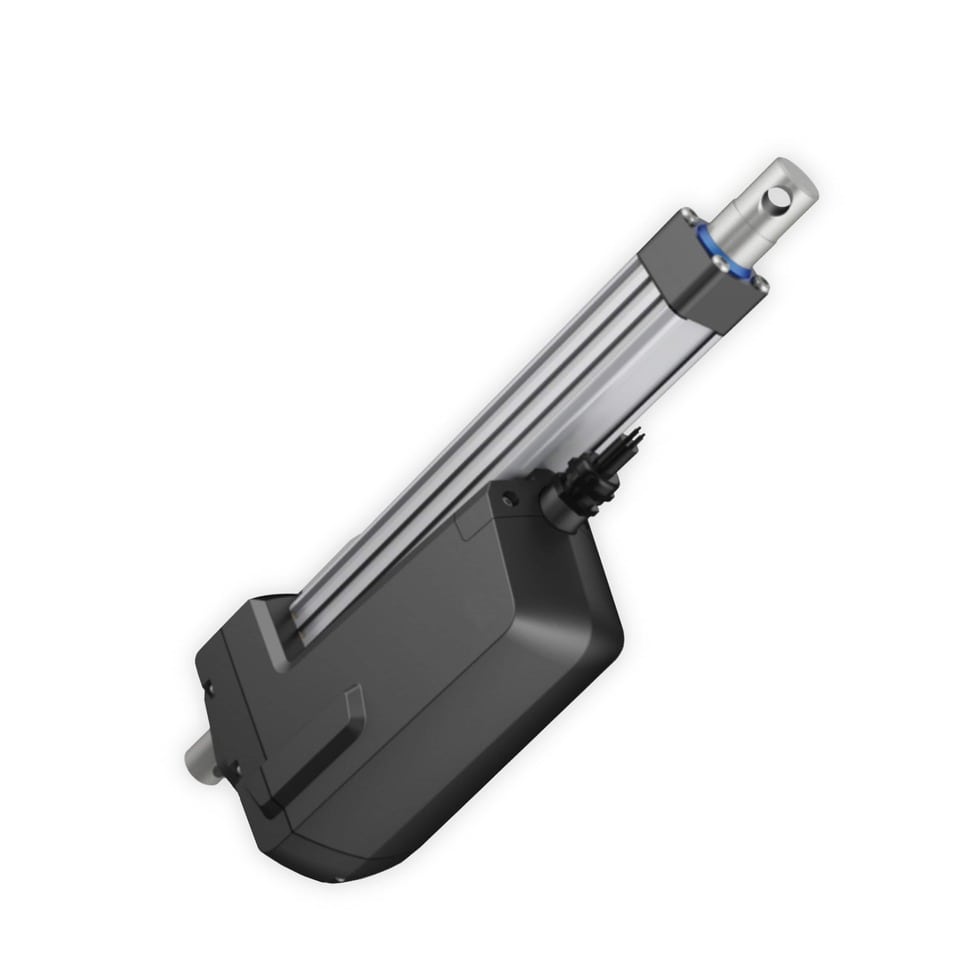

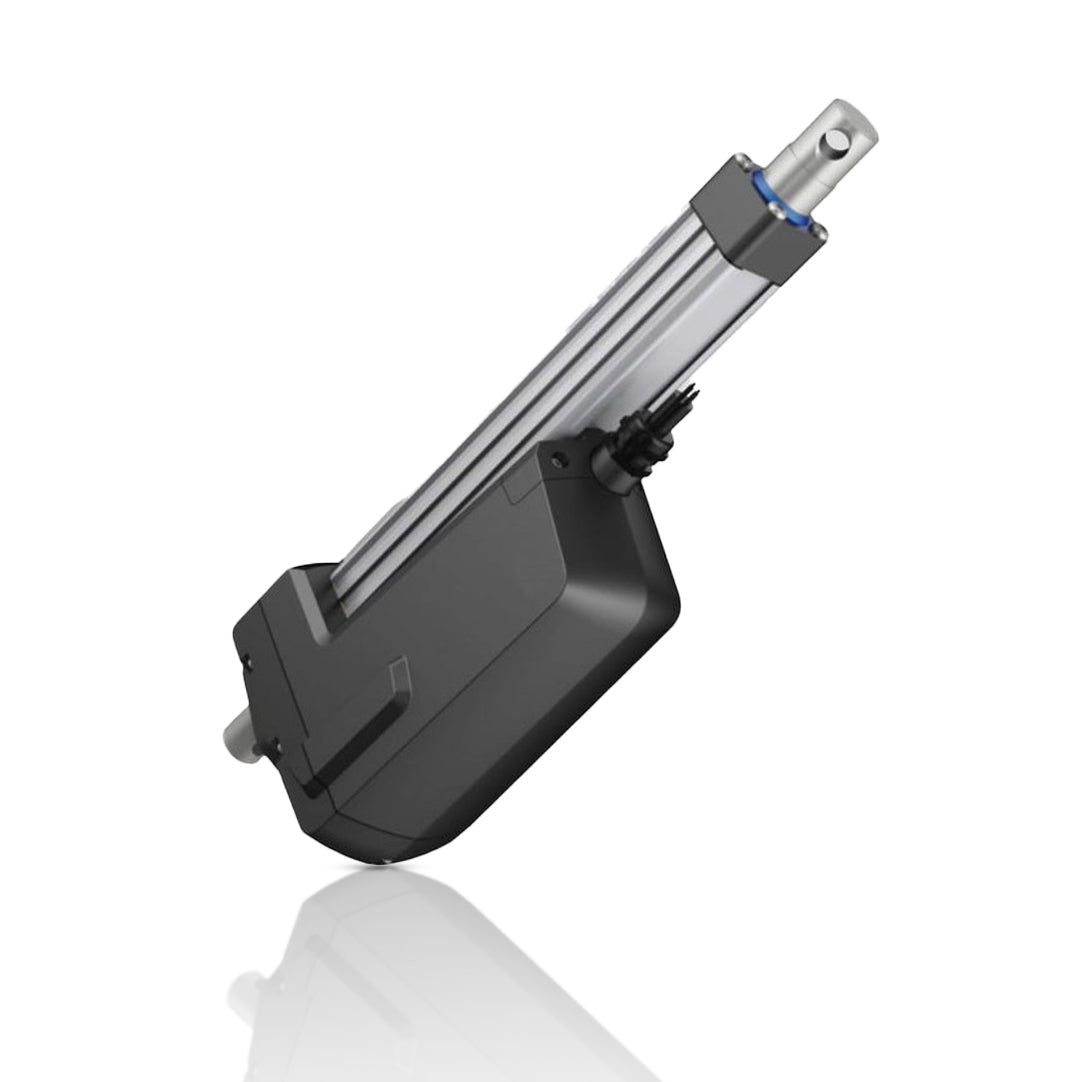

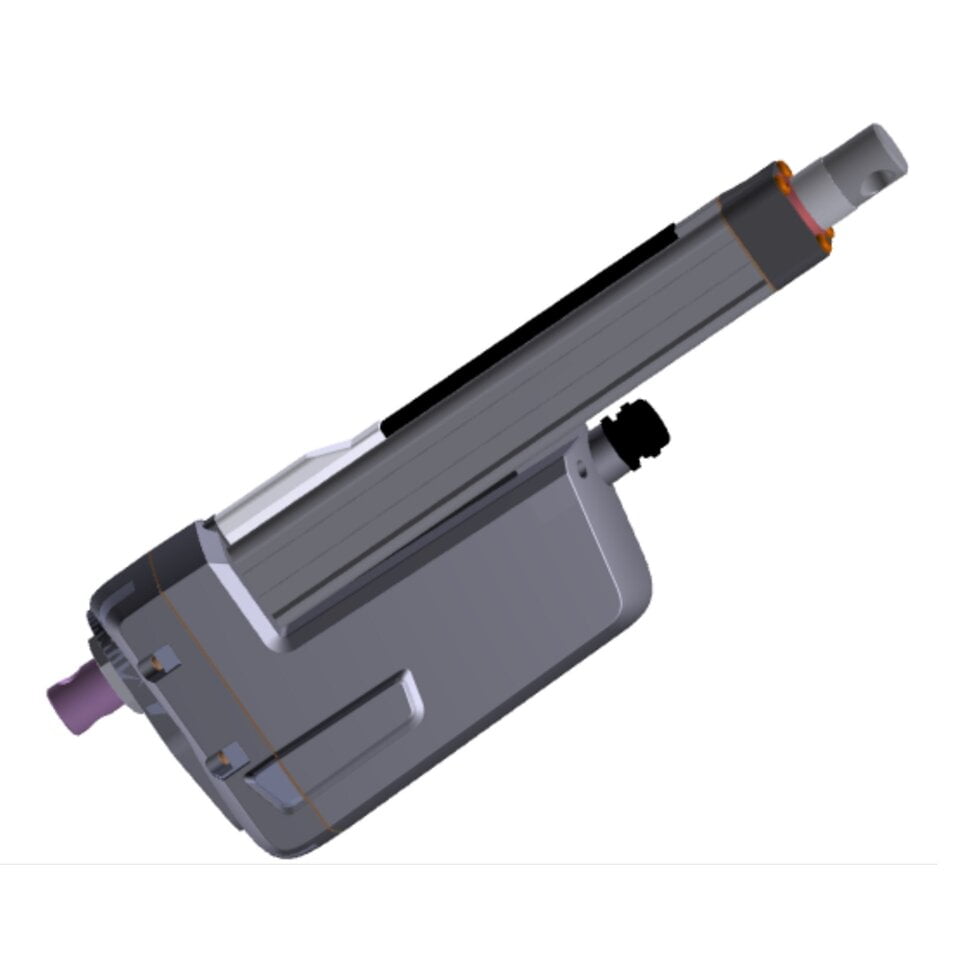

      The FIRGELLI® Industrial Heavy Duty Linear Actuators are for doing the major lifting, they can push or pull with up to 2,200 lbs. force. Made from tough hardened steel these units are ideal for industrial applications. The FIRGELLI® Heavy Duty Linear Actuator is one of the most rugged actuators you can find on the market today.  It incorporates all the experience we have gained from making linear actuators for our wide range of industries.

      Instructions for rotating the Base-end Clevis Hole can be found here.

      CAD models for this actuator can be found under Resources/3D Files. For further information review the specifications and technical drawings down below or visit our tutorials page for instructions on how to use this actuator with switches, remotes, speed controllers, and Arduino.

      Specifications
      Part Number: FA-HD-2200-XX FA-HD-2200-XX-24
      Voltage: 12 24
      IP Rating:   66
      Connection:  Bare wires
      No Load Speed ("/s):  0.5 (12.7mm)
      Gear Ratio:  40:1
      Error range: +3mm
      No-load max Amp:  4.5A
      Full load speed: ("/s)  0.17 (4.5mm)
      Full load max Amp:  20A
      Dynamic Load:  10,000N (2,200 lbs.)
      Static Load: 9,000N (2,000 lbs.)
      Clevis hole dia: 0.5" (13mm) - both ends
      Limit Switches:

      Internal, End of stroke. Non-Adjustable

      Feedback

      For Feedback option click here

      Duty Cycle: 25%
      Maintenance: None (Sealed Unit)
      Temp. Range: -40*F - 149*F (-40*C - 65*C)
      Drive Type: Spur Gear
      Feature: Overload Clutch Protection
      Certification: CE
      Bracket MB3U





      Technical Drawing
      Industrial Heavy Duty Actuator Technical Drawing
      Performance Graph
      Industrial Heavy Duty Performance Graph
      3D Model Downloads (.STEP)

      2200lb Force

      Wiring Diagram

      Click here to view our wiring diagram generator to help you set up your actuator system

      Wiring Diagram Generator
