12 Volt Double-Pole Double-Throw Timer Relay - DPDT Relay

Timer Relay - DPDT Relay timer relay and socket DPDT Relay Timer Relay Wiring Diagram DPDT Relay
Timer Relay - DPDT Relay

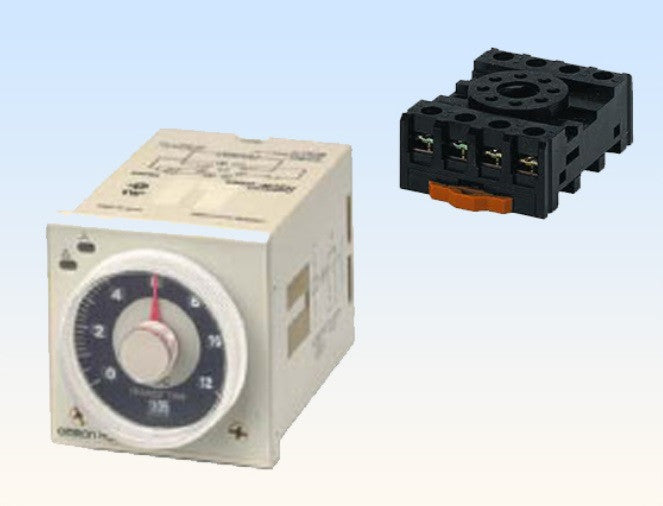

timer relay and socket DPDT Relay
Timer Relay Wiring Diagram DPDT Relay

      12 Volt Double-Pole Double-Throw Timer Relay - DPDT Relay

      USD
      Model #
      Quantity
      qty limit cart limit
      Frequently Bought
      Operation Manual

      Need your actuator or DC motor to automatically run back and forth on a set time? Then this DPDT Timer relay is for you, see the 4 different operation modes in the manual. DPDT means Double Pole Double Throw. This is required for reversing polarity which is also required for reversing direction of a Linear Actuator or motor.

      Operation Manual

      To run your actuator automatically back and forth on a set time.

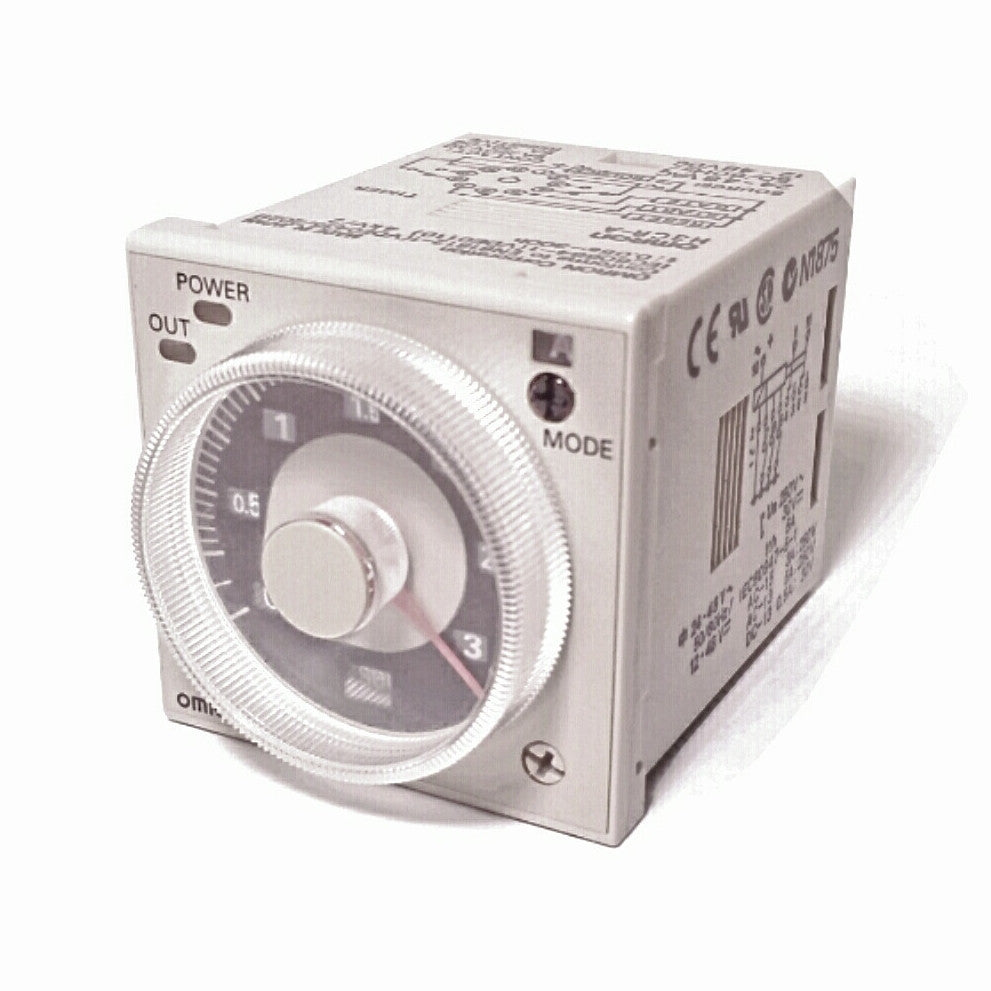

      DPDT Relay - timer relay
      Specifications
      • Model # FA-H3CR-AS
      • DPDT Relay with Timer(Double Pole Double Throw)
      • For Non-timer DPDT relay click here
      • For non-timer SPDT relay click here
      • Multi-function Solid State Timer
      • Allows Wide Range of power inputs 12V-48VDC
      • Time Ranges From 0.05 Seconds to 300 hours
      • Easy Set Up and Straight Forward Use with on panel display showing when power is on and unit is functioning.
      • No complicated parts or difficult directions set the time, set the mode (function) and provide power and you are done.
      • Wide range of application for use In periodic motion applications.
      • Comes with wiring quick release socket
      Technical Drawings
      Timer Relay Diagram DPDT Relay

      Customer Product Reviews

      Based on 2 reviews Write a review

      Need Help Finding the Right Actuator?

      We precision engineer and manufacture our products so you get direct manufacturers pricing. We offer same day shipping and knowledgeable customer support. Try using our Actuator Calculator to get help picking the right actuator for your application.

      Actuator Calculator
