PID Tuning Calculator — Ziegler-Nichols Method

Getting PID gains wrong means your system either crawls to setpoint or oscillates itself apart — neither is acceptable in a precision motion application. Use this PID Tuning Calculator (Ziegler-Nichols Method) to calculate proportional, integral, and derivative gains using experimentally determined ultimate gain (K_u) and ultimate period (T_u) values. It's critical in industrial automation, robotics, and linear actuator position control — anywhere you need stable, fast, repeatable response. This page includes the full Ziegler-Nichols formula set, a worked example, controller theory, and FAQ.

What is PID Tuning with the Ziegler-Nichols Method?

PID tuning is the process of finding the right proportional, integral, and derivative gain values so your controller responds quickly without oscillating or overshooting. The Ziegler-Nichols method gives you a structured way to calculate those gains from 2 measured values — the ultimate gain and ultimate period — instead of guessing.

Simple Explanation

Think of a PID controller like a driver steering a car toward a target. The proportional gain decides how hard to steer, the integral gain corrects for a persistent drift to one side, and the derivative gain smooths out jerky overcorrections. The Ziegler-Nichols method finds the right balance by first pushing the system until it just starts to wobble — then using that wobble to calculate exactly how aggressive each setting should be.

📐 Browse all 1000+ Interactive Calculators

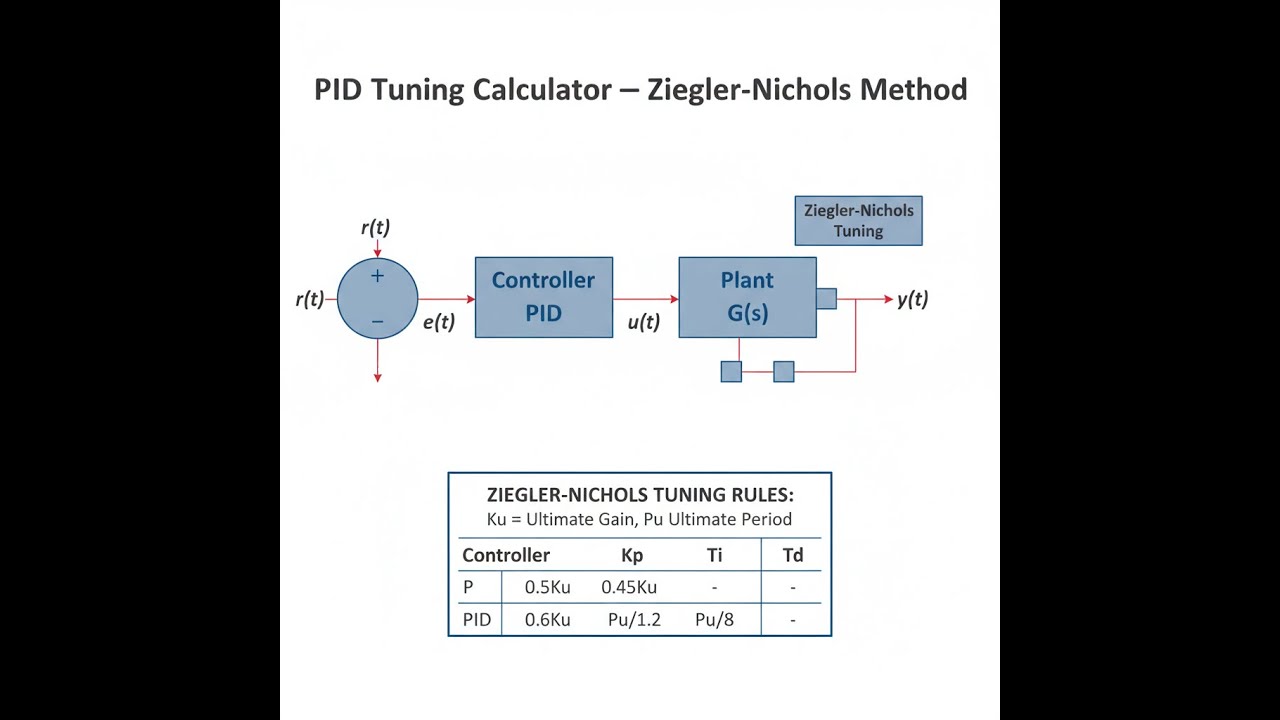

PID Control System Diagram

PID Tuning Calculator — Ziegler-Nichols Method

How to Use This Calculator

1. Enter the Ultimate Gain (K_u) — the proportional gain at which your system just begins to oscillate with constant amplitude.
2. Enter the Ultimate Period (T_u) in seconds — the period of those sustained oscillations.
3. Select your Controller Type: PID, PI, or P-only.
4. Click Calculate to see your result.

Ziegler-Nichols Tuning Equations

Use the formula below to calculate PID gains from your measured ultimate gain and ultimate period values.

Simple Example

Given: K_u = 10, T_u = 4 seconds, PID controller.

• K_p = 0.6 × 10 = 6.0
• K_i = 2 × 6.0 ÷ 4 = 3.0
• K_d = 6.0 × 4 ÷ 8 = 3.0

Result: K_p = 6.0, K_i = 3.0, K_d = 3.0.

Understanding PID Tuning with Ziegler-Nichols Method

The Ziegler-Nichols method represents one of the most fundamental and widely-used approaches for tuning PID controllers in industrial automation. Developed by John Ziegler and Nathaniel Nichols in 1942, this empirical method provides a systematic way to determine optimal controller parameters based on the dynamic characteristics of the controlled system.

How the Ziegler-Nichols Method Works

The PID tuning calculator ziegler nichols approach relies on identifying the ultimate gain (K_u) and ultimate period (T_u) of a control system. These critical parameters are determined experimentally by gradually increasing the proportional gain of a P-only controller until the system reaches the stability boundary, where sustained oscillations occur.

At this critical point, the system exhibits marginal stability with constant amplitude oscillations. The gain value that produces this condition is the ultimate gain (K_u), while the period of these oscillations is the ultimate period (T_u). These two parameters completely characterize the system's dynamic behavior at the stability boundary and provide the foundation for calculating optimal PID parameters.

The Physical Process Behind PID Control

PID control operates on the principle of feedback control, where the controller continuously adjusts the control output based on the difference between the desired setpoint and actual system output. Each component of the PID controller serves a specific purpose:

Proportional Control (P): Provides immediate response proportional to the current error. A higher proportional gain results in faster response but can lead to overshoot and instability. The Ziegler-Nichols method sets K_p = 0.6K_u, providing a balance between responsiveness and stability.

Integral Control (I): Eliminates steady-state error by accumulating past errors over time. The integral gain K_i = 2K_p/T_u ensures that persistent errors are corrected while maintaining system stability.

Derivative Control (D): Provides predictive action based on the rate of error change, helping to reduce overshoot and improve stability. The derivative gain K_d = K_pT_u/8 adds damping to the system response.

Practical Applications in Linear Actuator Systems

When implementing PID control with FIRGELLI linear actuators, the Ziegler-Nichols method proves particularly valuable for position control applications. Electric linear actuators often exhibit second-order dynamics with inherent mechanical damping, making them excellent candidates for PID control tuning.

Consider a precision positioning system using a FIRGELLI linear actuator in a robotic assembly line. The actuator must achieve accurate positioning while minimizing settling time and overshoot. Using the PID tuning calculator ziegler nichols method, engineers can systematically determine optimal control parameters without extensive trial-and-error testing.

Worked Example: Actuator Position Control

Let's examine a practical example of tuning a PID controller for a linear actuator position control system:

Given Parameters:

• Ultimate gain (K_u) = 8.5
• Ultimate period (T_u) = 2.4 seconds
• Controller type: PID

Calculations:

• K_p = 0.6 × 8.5 = 5.1
• K_i = 2 × 5.1 ÷ 2.4 = 4.25
• K_d = 5.1 × 2.4 ÷ 8 = 1.53

These calculated parameters provide an excellent starting point for the PID controller, typically requiring minimal fine-tuning for optimal performance.

Experimental Procedure for Determining Critical Parameters

To apply the Ziegler-Nichols method effectively, follow this systematic experimental procedure:

Step 1: Configure the controller as a proportional-only (P) controller by setting integral and derivative gains to zero.

Step 2: Start with a low proportional gain and gradually increase it while observing the system response to a step input.

Step 3: Continue increasing the proportional gain until the system exhibits sustained oscillations with constant amplitude. This is the ultimate gain (K_u).

Step 4: Measure the period of these oscillations to determine the ultimate period (T_u).

Step 5: Apply the Ziegler-Nichols formulas using the PID tuning calculator ziegler nichols to determine optimal PID parameters.

Design Considerations and Limitations

While the Ziegler-Nichols method provides excellent baseline tuning, several factors should be considered for optimal implementation:

System Nonlinearities: Real-world systems often exhibit nonlinear behavior that may not be captured by the linear analysis underlying the Ziegler-Nichols method. This is particularly relevant for actuator systems with friction, backlash, or saturation effects.

Load Variations: Systems with varying loads may require adaptive tuning or gain scheduling to maintain optimal performance across different operating conditions.

Noise Sensitivity: The derivative term in PID controllers can amplify high-frequency noise. In noisy environments, consider reducing the derivative gain or implementing derivative filtering.

Safety Considerations: Pushing a system to the stability boundary during tuning requires careful monitoring to prevent damage or unsafe operation.

Advanced Tuning Modifications

Modern control applications often employ modified Ziegler-Nichols tuning rules to address specific performance requirements:

Conservative Tuning: For systems requiring high stability margins, use K_p = 0.33K_u, K_i = 2K_p/T_u, and K_d = K_pT_u/3.

Aggressive Tuning: For fast response applications, consider K_p = 0.75K_u with appropriately scaled integral and derivative terms.

PI Control: When derivative action is undesirable due to noise, use K_p = 0.45K_u and K_i = 1.2K_p/T_u.

Integration with Modern Control Systems

The PID tuning calculator ziegler nichols method integrates seamlessly with modern digital control systems and programmable logic controllers (PLCs). Many industrial controllers now include auto-tuning features based on Ziegler-Nichols principles, automatically determining critical parameters and calculating optimal gains.

When working with motion control systems incorporating linear actuators, the calculated PID parameters can be directly implemented in servo drives or motion controllers. The robust nature of Ziegler-Nichols tuning makes it particularly suitable for automated tuning procedures in manufacturing environments.

For engineers working with multiple actuator axes or complex motion profiles, systematic application of the Ziegler-Nichols method ensures consistent performance across all controlled axes while minimizing tuning time and effort.

Frequently Asked Questions
