Worm Gear Motor, Rotary Actuator

Worm Gear Motor, Rotary Actuator top view Worm Gear Motor, Rotary Actuator bottom view Worm Gear Motor, Rotary Actuator dimensions

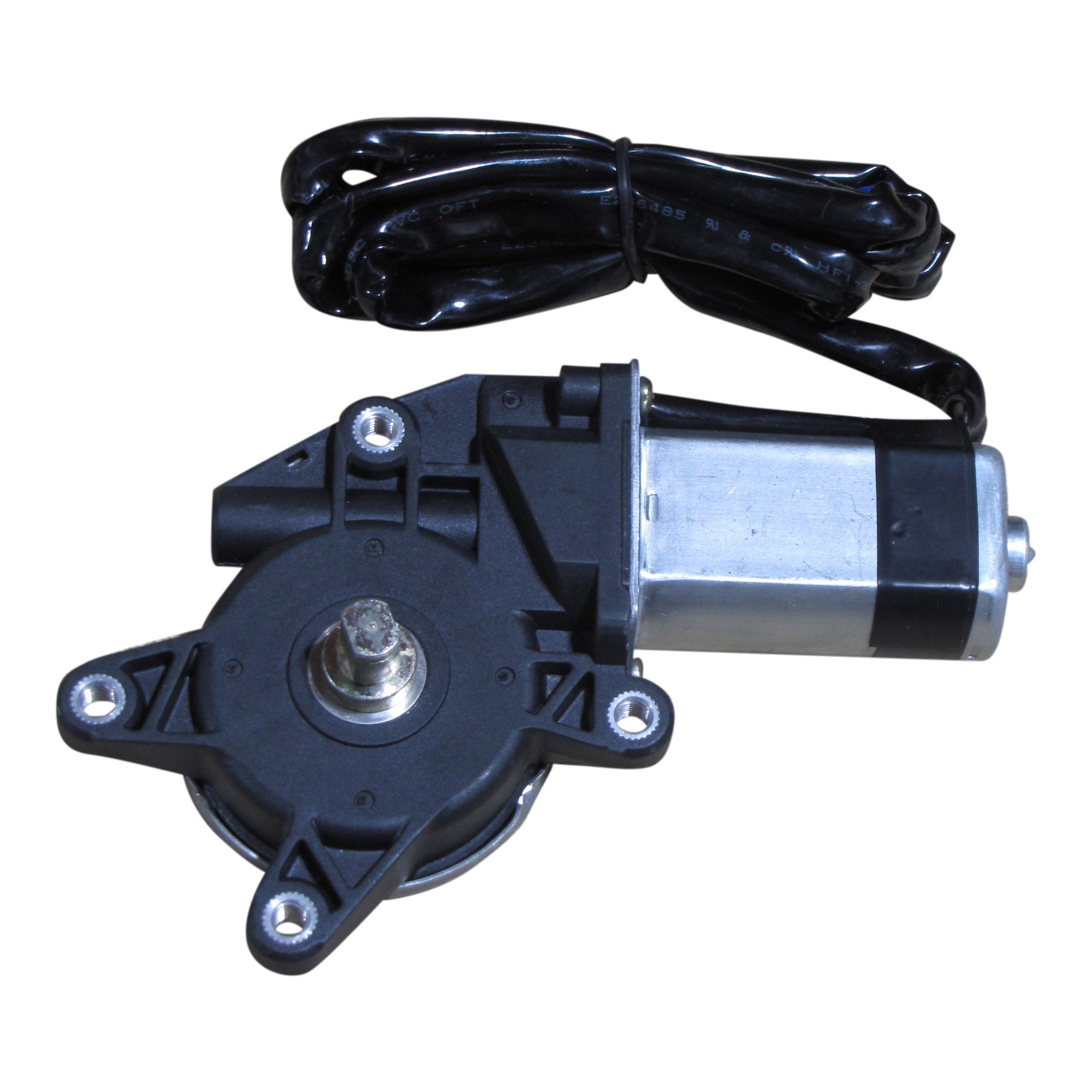

Worm Gear Motor, Rotary Actuator top view

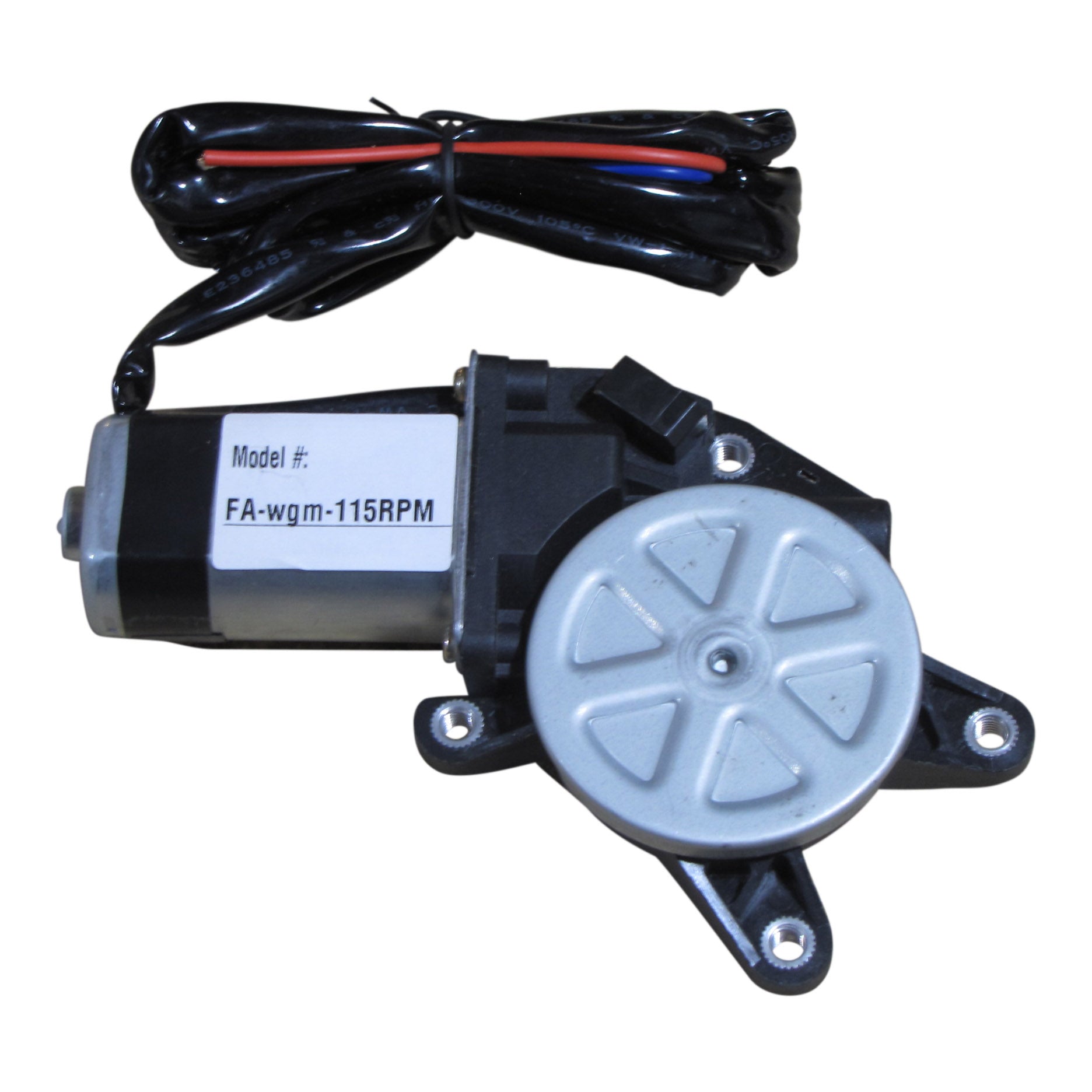

Worm Gear Motor, Rotary Actuator bottom view

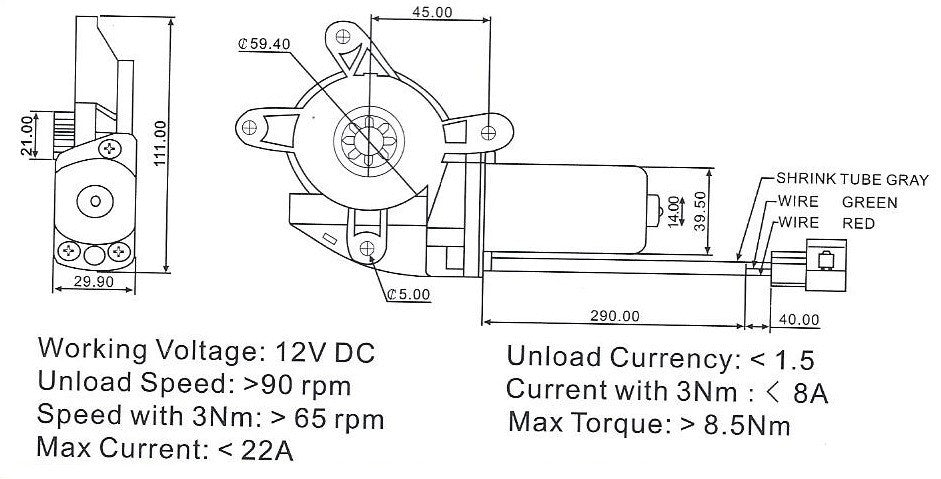

Worm Gear Motor, Rotary Actuator dimensions

      Worm Gear Motor, Rotary Actuator

      USD
      Model #
      Quantity
      qty limit cart limit
      Frequently Bought

      These Worm Gear motors or rotary actuators as some people call them are extremely quiet and powerful the rotating shaft has a flat on it so you can attach a variety of pulleys or gears. Some people use these with pulleys to pull rope or wire to lift or drop something. Very versatile and offer many options.

      Description

      • Converts any crank-style window to power window

      • Universal features, fits any car and van

      • Steel power metallurgical main gear

      • Operating voltage: 12V DC±2V

      Specifications

      Unloaded Speed 115 RPM

      Speed at 3Nm is 57 RPM

      Max Stall Current  22A

      Unloaded Current draw 1.7A

      Full load current  9.5A

      Typical rated Current  6A

      Max Torque 8.5Nm

      Drive Shaft has 2 flats for easy installation.
