Quick Connect Socket for 12 Volt Double-Pole Double-Throw Relay

Quick Connect Socket for 12 Volt Double-Pole Double-Throw Relay

Firgelli Automations

$12.00

Share:
This is a simple quick connector socket block for the FA-LB2-12DS (DPDT Relay sold separately). It features a tough plastic housing with screw terminals for easy wire connection.

This is a simple quick connector socket block for the FA-LB2-12DS (DPDT Relay sold separately). It features a tough plastic housing with screw terminals for easy wire connection. See the schematic diagram below to match the screw terminals to the FA-LB2-12DS relay pins. The relay simply presses into place and the socket has 2 screw holes for secure fastening to your equipment. This product is the quick connect socket, matching FA-LB2-12DS relay sold separately.

This is a simple quick connector socket block for the FA-LB2-12DS (DPDT Relay sold separately). It features a tough plastic housing with screw terminals for easy wire connection. See the schematic diagram below to match the screw terminals to the FA-LB2-12DS relay pins. The relay simply presses into place and the socket has 2 screw holes for secure fastening to your equipment. This product is the quick connect socket, matching FA-LB2-12DS relay sold separately.

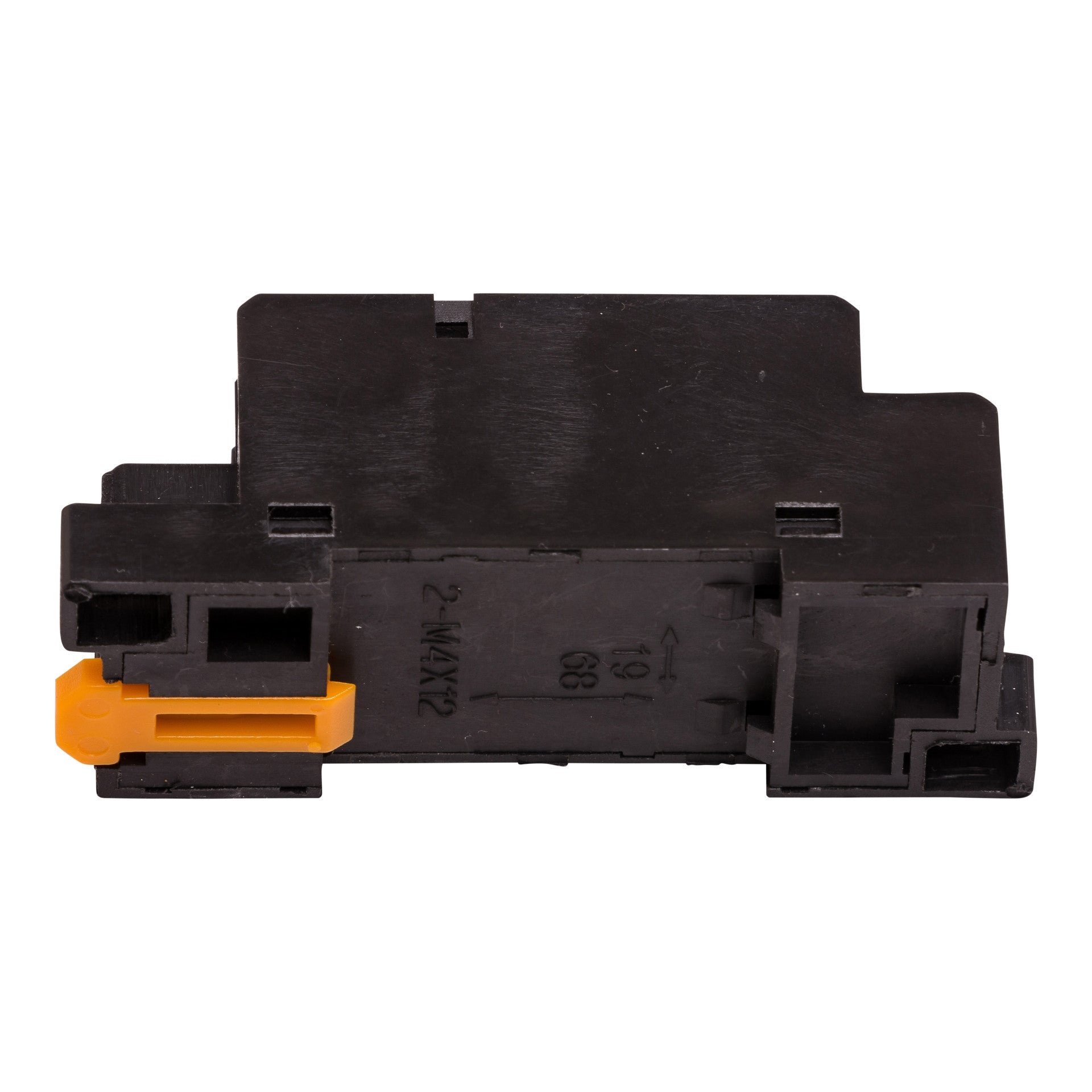

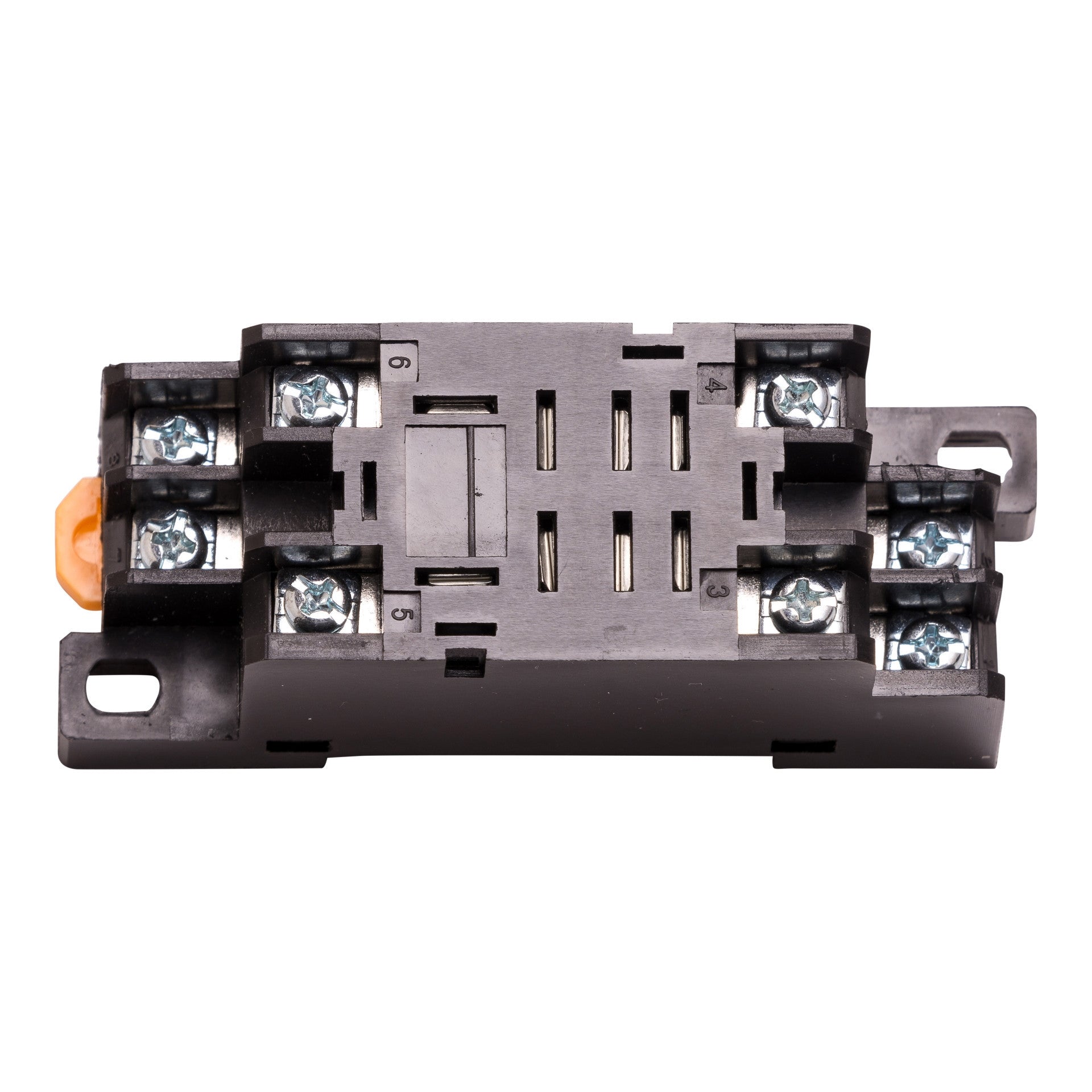

Quick connect socket for DPDT relay

Quick connect sockets for Actuator relays

Relay for actuator wiriing diagram
