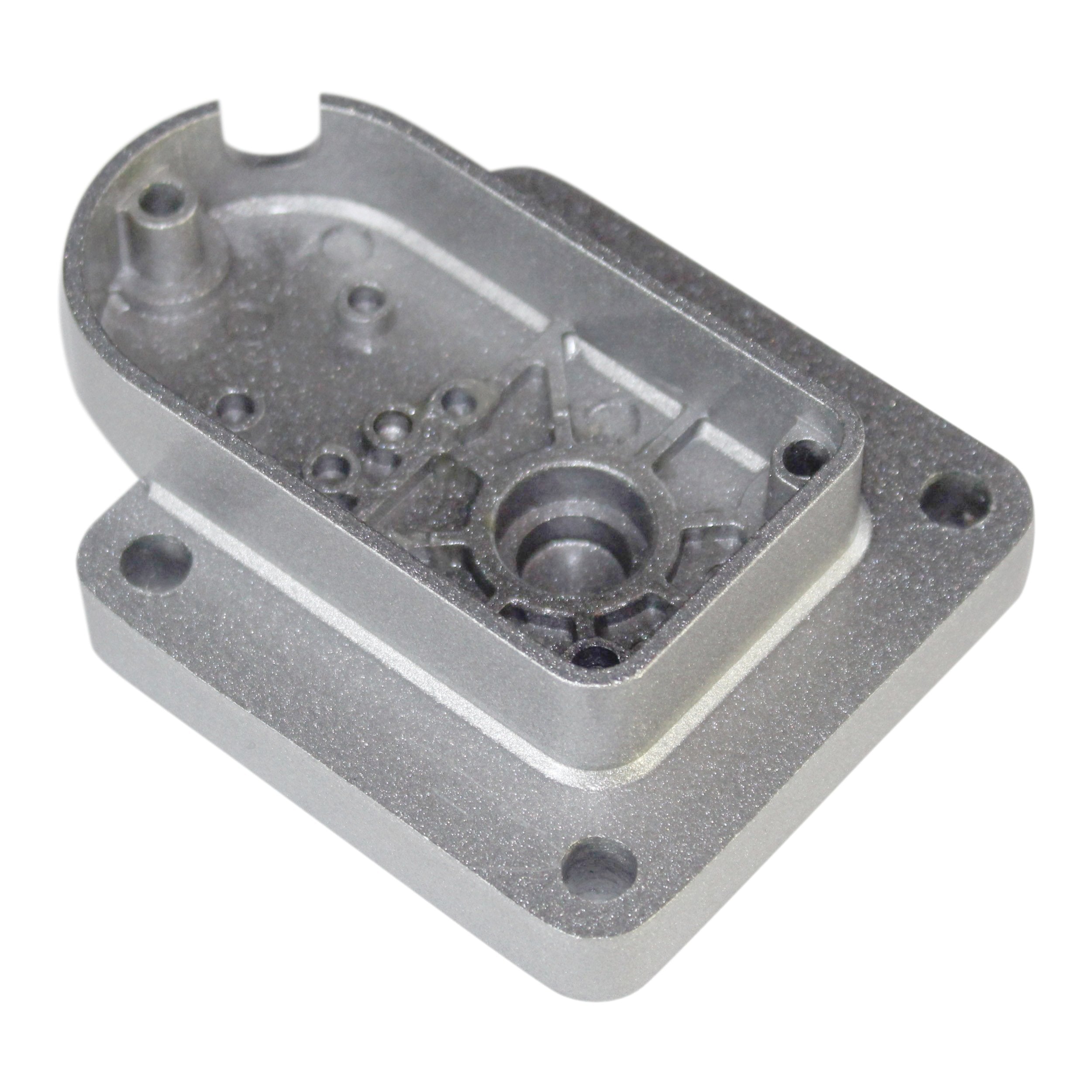

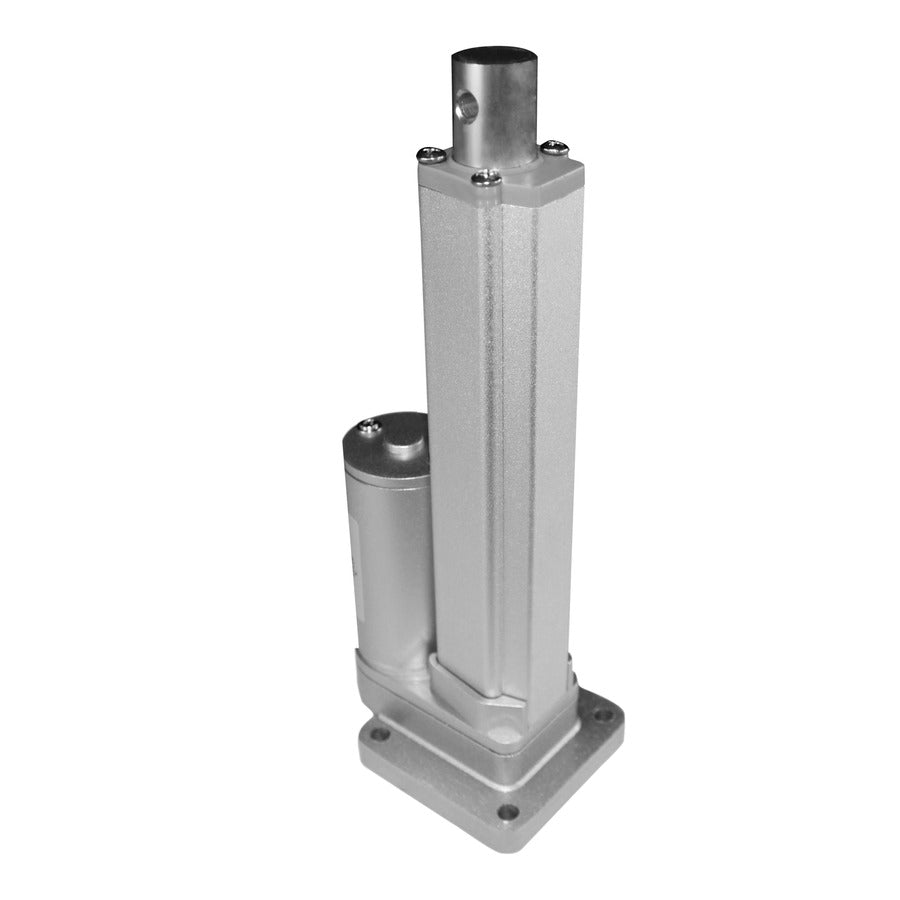

This Base Mounting Bracket Converts the Premium Actuators or Optical Feedback Actuators to a Column Lift style Actuator. To install them you unscrew the 2 screws off the back of the actuator (watch the video below) and replace them with the screws that come with the bracket. The Optical Actuator bracket (FA-OS-IMD3) comes with longer screws to fit through the body.
This bracket was specifically designed to work with our Premium Actuators and Optical Feedback Premium Linear Actuators only.
*NOTE: Does NOT fit the 400 lb. force in the Premium or Optical Feedback Actuators
To view or download 3D Step file
How to convert Premium Actuators using this Base Plate Bracket
