Hall-effek huidige sensoreenheid

USD

Model #AD-PB927006

qty limit cart limit

Add Warranty Plus +8%

Standard Warranty (included in purchase price): 12 month warranty due to device malfunctions when it is used within the described conditions/limits.

Warranty Plus: Your product will be replaced (including free shipping) with a new one within 12 months of purchase, even if it is damaged due to improper wiring, incorrect usage, a problem in the electrical installation or any other circumstance.

Sorry, this product is temporarily out of stock.

View Cart

Versendingskosteberaming

Note: You must have items in your cart already before you can see the estimated costs to ship your cart. This shipping tool will estimate the total shipping cost for your entire basket.

Country

Zip/Postal Code

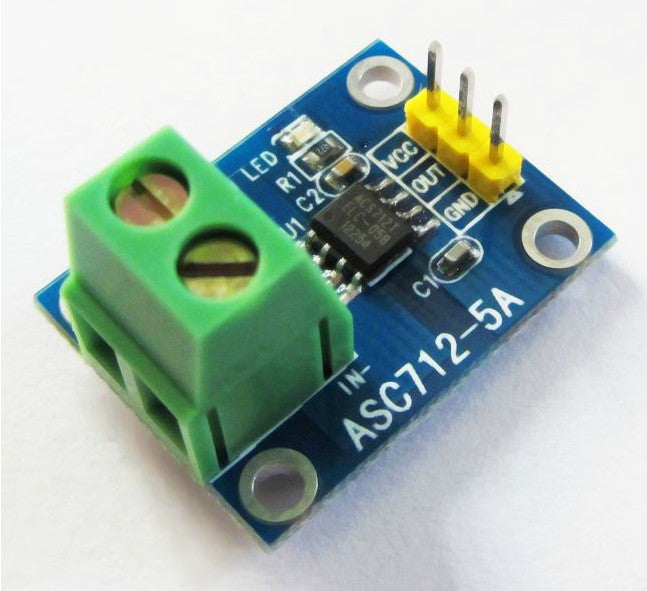

Dit is 'n uitbreekbord vir die volledig geïntegreerde Hall Effect-gebaseerde lineêre ACS712-stroomopnemer. Die sensor gee akkurate stroommeting vir beide AC- en DC-seine. Die ACS712 gee 'n analoog-uitsetsignaal wat lineêr wissel met die aangevoerde stroom. Die toestel benodig 5VDC vir VCC en 'n paar filterkondensators.

Kenmerke

x05B (5 Amp) weergawe
Ruisarm analoog seinpad
Toestelbandwydte word via die FILTER-pen gestel
Stygtyd van 5 µs as reaksie op die stap-invoerstroom
80 kHz bandwydte
Totale uitsetfout 1,5% by TA = 25 ° C
Klein voetafdruk, lae-profiel SOIC8 pakket
1.2 mΩ interne geleierweerstand
2,1 kVRMS minimum isolasiespanning van penne 1-4 tot penne 5-8
5,0 V, enkele toevoer
66 tot 185 mV / A uitsetsensitiwiteit
Uitspanning eweredig aan WS- of GS-strome
Fabrieksny vir akkuraatheid
Uiters stabiele uitsetspanning
Byna nul magnetiese histerese
Ratiometriese uitset vanaf toevoerspanning
